COVA - How to Set Up a Recording Schedule

Updated

-----------------------------------

Affected Roles:    System Administrators

Related DW Software:    COVA Web Client

Software Version:    COVA Rev. 05/26

Last Edit:    July 23, 2026

-----------------------------------

How to Set Up a Recording Schedule in COVA

This article will outline how to select a recording type, draw a schedule on the timetable, set post-event recording time, and apply settings across all cameras.

Supported/Affected Devices:

  • DW-COVA4 / DW-COVA8 / DW-COVA16

Resolution:

Tip: It is recommended to configure motion detection on all cameras before setting up your recording schedule.



Part 1 — Open Recording Schedule Settings

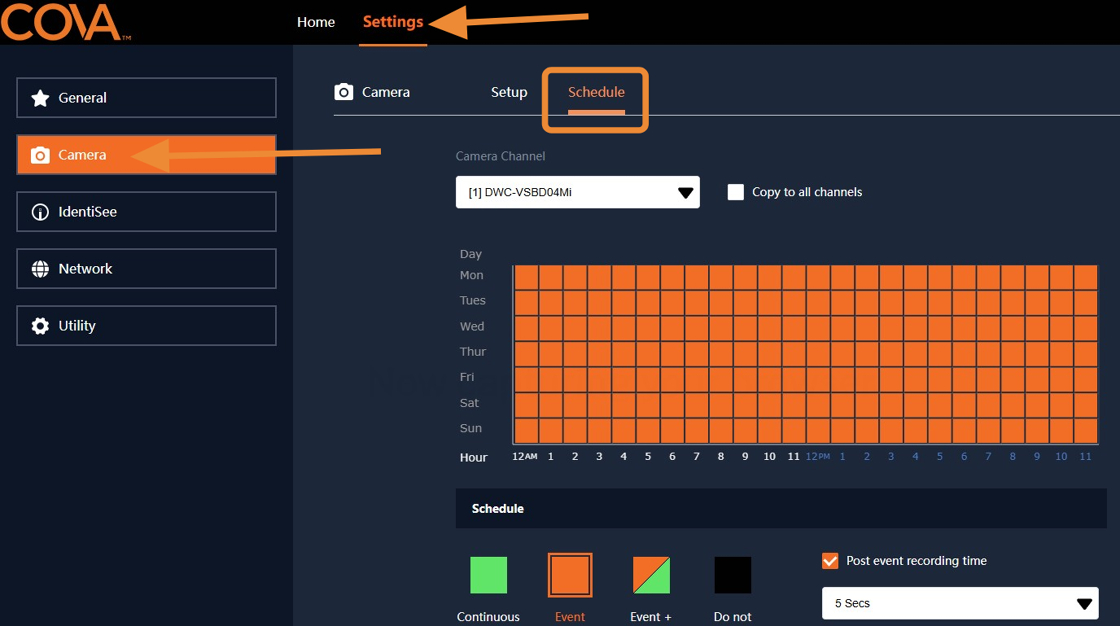

  1. Navigate to Settings → Camera → Schedule.
How to Set Up a Recording Schedule in COVA - Step 1.jpeg

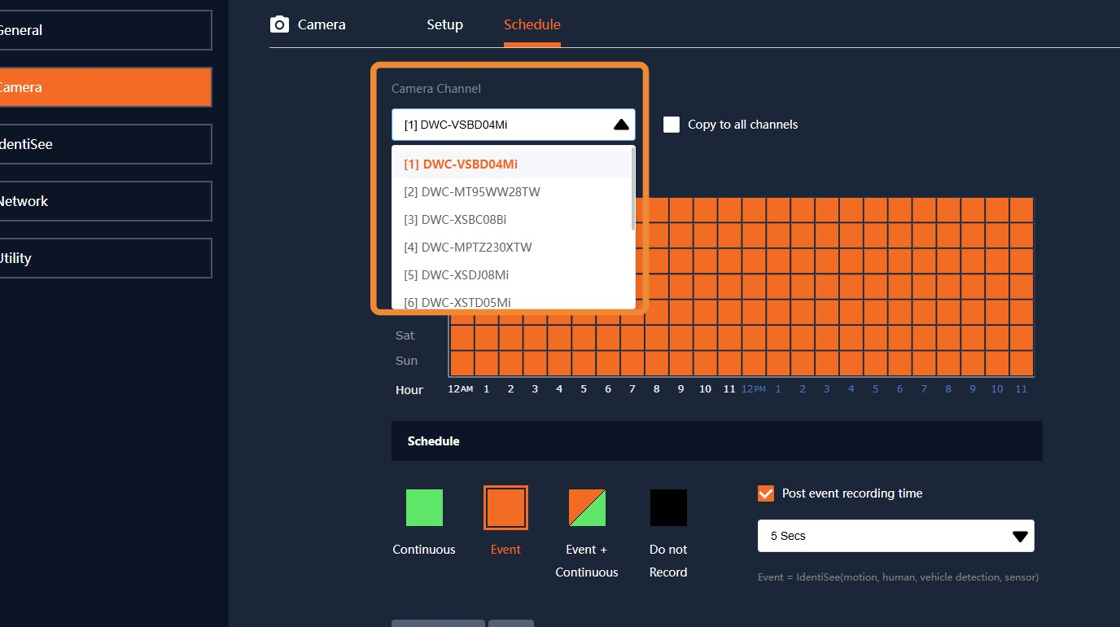

  1. Select a camera from the Camera Channel drop-down.
How to Set Up a Recording Schedule in COVA - Step 2.jpeg

Part 2 — Select a Recording Type

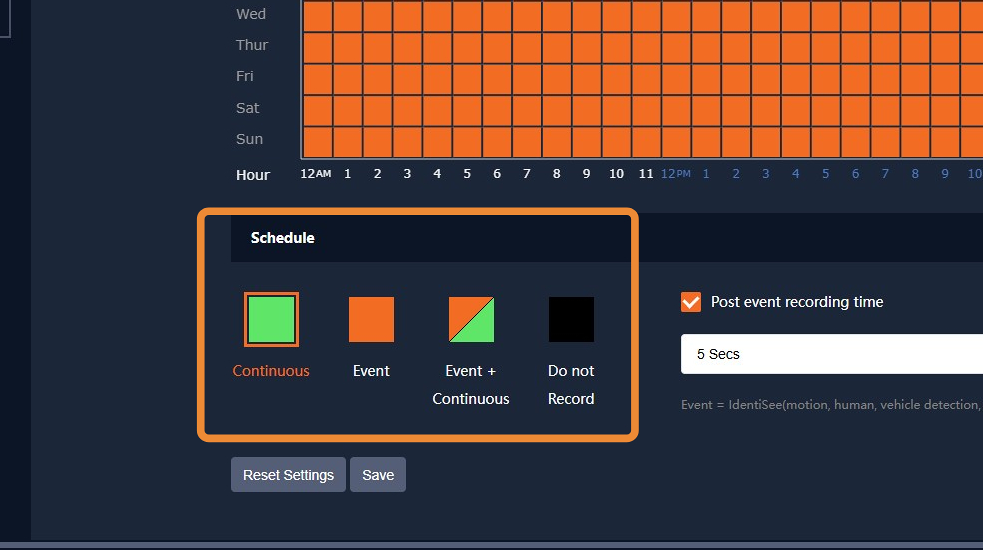

  1. Select one of the following recording types from the legend:
    • Continuous — records at all times
    • Event — records only when an event is detected (motion, human, vehicle, or sensor)
    • Event + Continuous — records continuously but flags event segments
    • Do Not Record — no recording for the selected time block
How to Set Up a Recording Schedule in COVA - Step 4.jpeg

Part 3 — Draw the Schedule on the Timetable

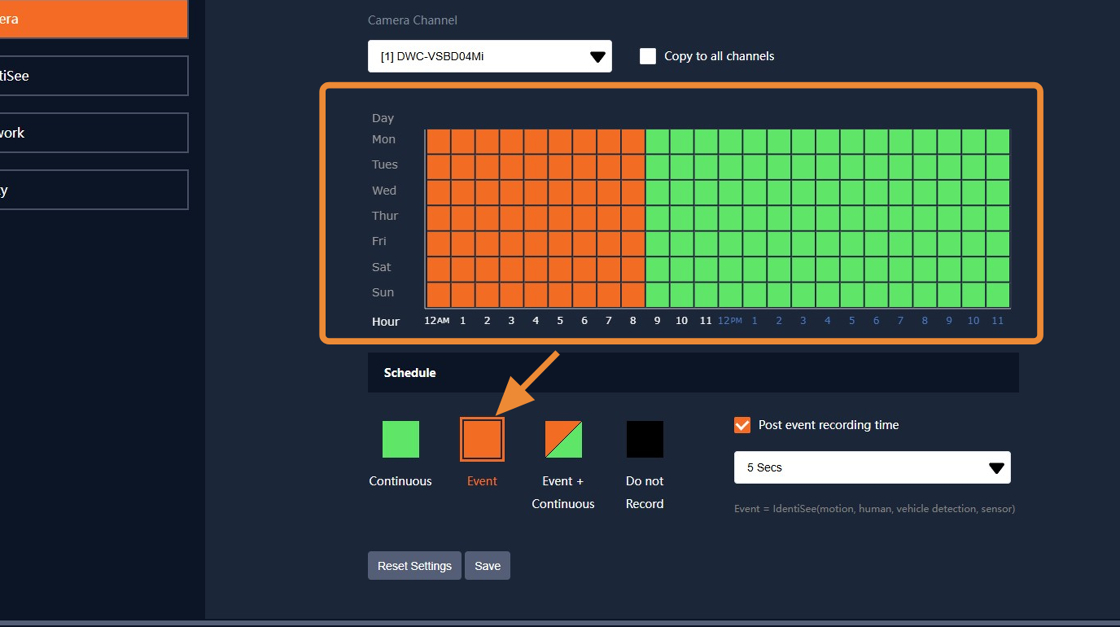

  1. Click and drag across the timetable grid to apply the selected recording type to that time block.
How to Set Up a Recording Schedule in COVA - Step 6.jpeg

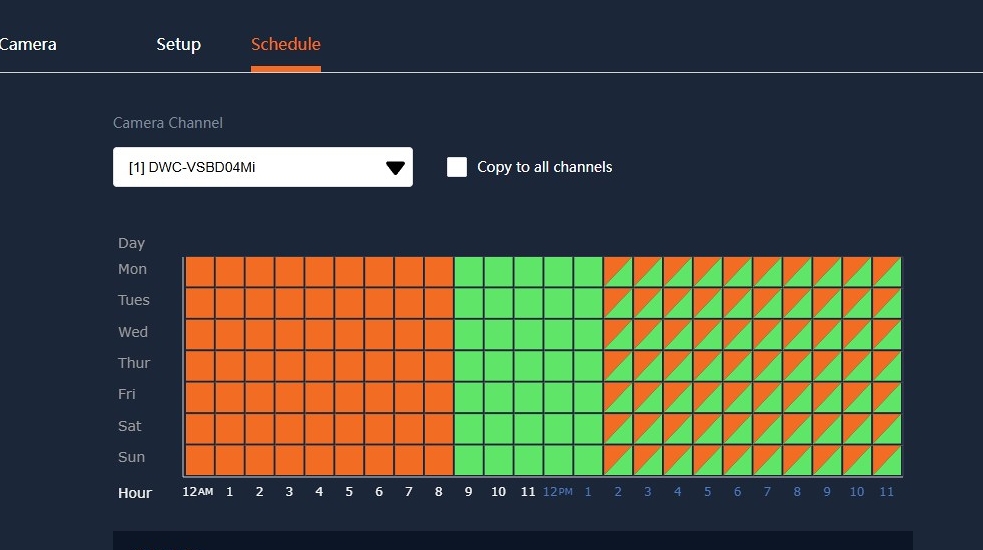

  1. Repeat for each day and time block as needed.
How to Set Up a Recording Schedule in COVA - Step 7.jpeg

Part 4 — Set Post-Event Recording Time

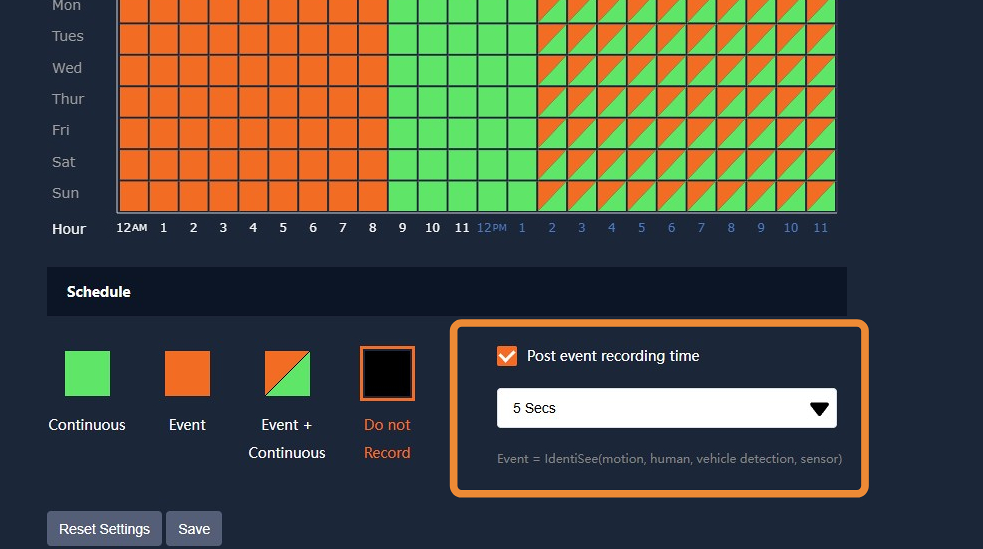

  1. Enable Post-event recording time and select a duration from the drop-down (5 seconds to 10 minutes).
How to Set Up a Recording Schedule in COVA - Step 9.jpeg

Part 5 — Apply to All Channels (Optional)

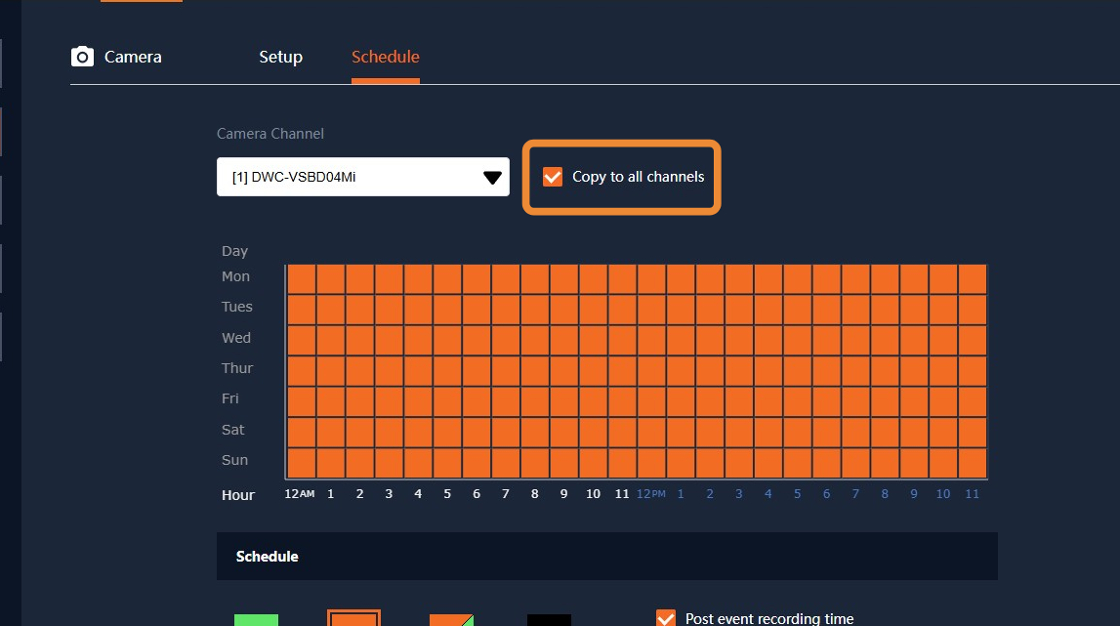

  1. Check Copy to all channels to apply the same schedule to every camera.
How to Set Up a Recording Schedule in COVA - Step 11.jpeg

Part 6 — Save Settings

Tip: Click Reset Settings at any time to revert unsaved changes back to the last saved state.

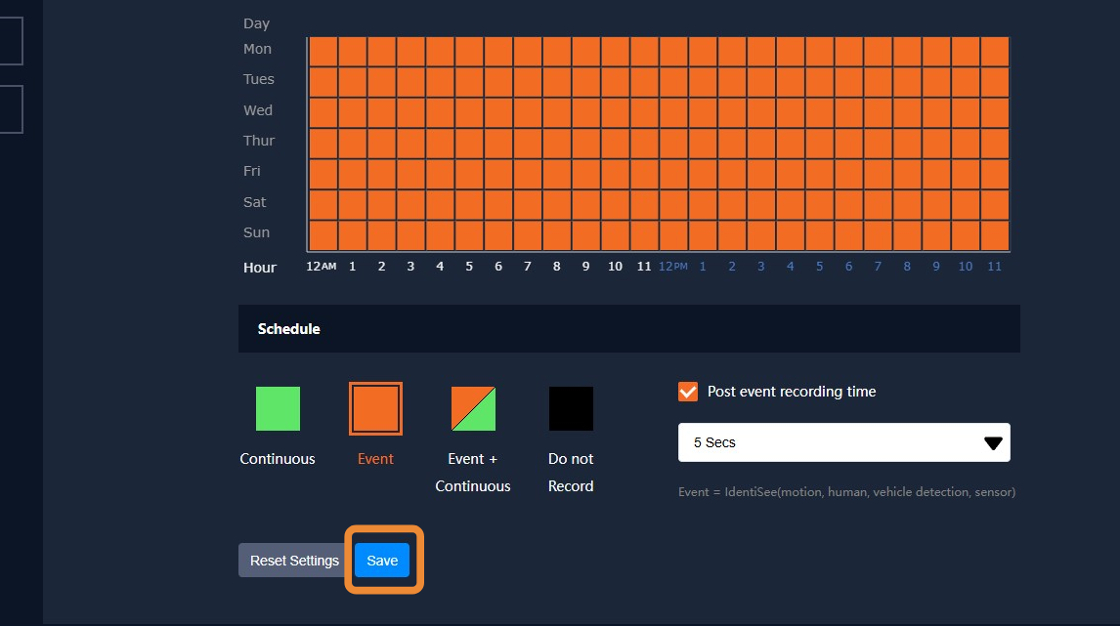

  1. Click Save.
How to Set Up a Recording Schedule in COVA - Step 14.jpeg

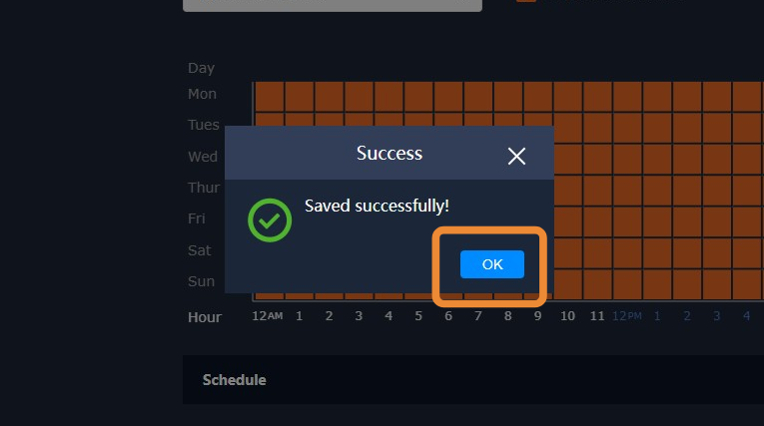

  1. Verify the success confirmation message and click OK.
How to Set Up a Recording Schedule in COVA - Step 15.jpeg
