Setting Multiple Motion Areas with the VMAX® IP Plus™, CPRO-Sourced Cameras, and TVT-Sourced Cameras
-----------------------------------
Affected Roles: Administrator, Owner
Complexity: Medium
Software Version: VMAX IP Plus v1.5.0.0 or newer
Last Edit: February 8, 2022
-----------------------------------
[INTERNAL USE – this article contains manufacturer origin information regarding current and upcoming DW Products]
Motion Area Selection
The camera groups CPRO and TVT act as the developers and vendors responsible for developing the current Digital Watchdog IP camera products – the MEGApix Series.
As CPRO and TVT cameras use different motion detection configuration setups in their respective Web UIs, you may also notice a difference when setting up the motion detection area(s) with the VMAX IP Plus.
This article will outline the comparable differences between CPRO and TVT sourced IP cameras with motion area setup and include a list of MEGApix cameras that were manufactured by CPRO and TVT.
Supported/Affected Devices:
- VMAX® IP Plus™ Series
- MEGApix® IP Camera Series
Setting Up the Motion Area for a VMAX IP Plus
Motion Area Configuration for CPRO Web UI

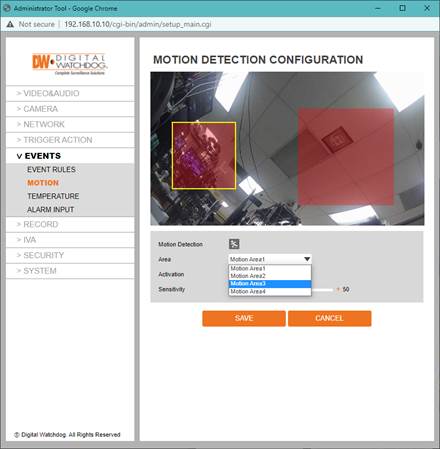

When setting up Motion Detection in the CPRO camera Web UI,
- The settings for Motion Detection in the CPRO camera Web UI can be found in the Setup > Events > Motion menu.
- You can draw and arrange up to four (4) Motion Areas in the CPRO camera Web UI. Motion Areas can only be drawn and resized in the shape of rectangles.
- When drawing a Motion Area for a CPRO camera in the VMAX IP Plus UI, you can draw and arrange a single (1), rectangular Motion Area on a single detection layer in the NVR’s UI.
- If a customer wants to detect motion from multiple, separate areas with a CPRO camera, they can draw up to four (4) detection zones (on individual layers) in the camera’s Web UI (only). In this case, do not change the default Motion Area settings in VMAX IP Plus UI for the CPRO camera.
**NOTE: Making changes to the Motion Area of a camera in the VMAX IP Plus UI will force the camera to reshape the “Motion Area 1” setting in the CPRO camera, but will not accommodate for any additional Motion Areas in the CPRO camera. VMAX IP Plus will only display the 1st motion detection area of the CPRO camera.
Motion Area Configuration for TVT Web UI

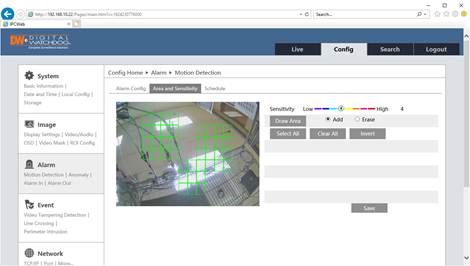

- The settings for Motion Detection in the TVT camera Web UI can be found in the Config > Alarm > Motion Detection > Alarms and Sensitivity menu.
- You can draw and arrange the camera’s Motion Detection Area on a single detection layer.
- When drawing a VMAX IP Plus’s Motion Area for a TVT camera, you can draw and arrange multiple Motion Areas on a single detection layer in the NVR’s UI. The selected areas can be marked into separated sections and shaped to the user’s preference.
Camera List
Use the list of MEGApix IP cameras below to identify if the camera was manufactured by CPRO or TVT:
|
CPRO Cameras |
||||||
|
Part Number |
Is this a replacement for a product? |
Warranty |
Description |
Manufacturer |
Housing |
Family |
|
MEGApix® Flex™ |
|
|
|
|
|
|
|
DWC-PVX20WATW |
NA |
5 years full |
20MP vari-focal Flex IP camera |
CPRO |
Flex |
MEGApix® Flex |
|
DWC-PPVX20WATW |
NA |
5 years full |
20MP vari-focal Flex IP camera |
CPRO |
Flex |
MEGApix® Flex |
|
MEGApix® 2.1MP/1080p |
|
|
|
|
|
|
|
DWC-MV72Di28TW |
replacing DWC-MV72Di28T |
5 years full |
2.1MP/1080p round head IP camera |
CPRO |
ultra low-profile |
MEGApix® |
|
MEGApix® Pinhole |
|
|
|
|
|
|
|
DWC-MPH2W28TW |
NA |
5 years full |
2.1MP/1080p pinhole ATM camera with IVA |
CPRO |
pinhole camera |
MEGApix® |
|
DWC-MPPH2W28TW |
NA |
5 years full |
2.1MP/1080p pinhole ATM camera with IVA+ |
CPRO |
pinhole camera |
MEGApix® |
|
MEGApix® Flex™ multi-sensor configurable panoramic view IP cameras |
|
|
|
|
|
|
|
DWC-PVX16W4 |
NA |
5 years full |
|
CPRO |
Flex Dome |
MEGApix® Flex™ |
|
DWC-PVX16W |
||||||
|
DWC-PVXLMOD28 |
NA |
5 years full |
Lens modules for the DWC-PVX16W configurable model |
CPRO |
Flex Dome Lens modules |
MEGApix® Flex™ |
|
DWC-PVXLMOD4 |
||||||
|
DWC-PVXLMOD6 |
||||||
|
DWC-PVXLMOD8 |
||||||
|
MEGApix® 4MP IP Cameras |
|
|
|
|
|
|
|
DWC-MB44Wi650 |
NA |
5 years full |
|
CPRO |
Long Range Bullet |
MEGApix® 4MP |
|
DWC-MB74Wi4 |
NA |
5 years full |
|
CPRO |
Bullet |
MEGApix® 4MP |
|
DWC-MB44WiA |
NA |
5 years full |
|
CPRO |
Bullet |
MEGApix® 4MP |
|
DWC-MD44WA |
NA |
5 years full |
|
CPRO |
Snapit Indoor Dome |
MEGApix® 4MP |
|
DWC-MD44WAB |
NA |
5 years full |
|
CPRO |
Snapit Indoor Dome |
MEGApix® 4MP |
|
DWC-MD44WiA |
NA |
5 years full |
|
CPRO |
Snapit Outdoor Dome |
MEGApix® 4MP |
|
DWC-MD44WiAB |
NA |
5 years full |
|
CPRO |
Snapit Outdoor Dome |
MEGApix® 4MP |
|
DWC-MV44WA |
NA |
5 years full |
|
CPRO |
Snapit Indoor Dome |
MEGApix® 4MP |
|
DWC-MV44WAB |
NA |
5 years full |
|
CPRO |
Snapit Indoor Dome |
MEGApix® 4MP |
|
DWC-MV44WiA |
NA |
5 years full |
|
CPRO |
Snapit Outdoor Dome |
MEGApix® 4MP |
|
DWC-MV44WiAB |
NA |
5 years full |
|
CPRO |
Snapit Outdoor Dome |
MEGApix® 4MP |
|
DWC-MV84WiA |
NA |
5 years full |
|
CPRO |
Outdoor Dome |
MEGApix® 4MP |
|
DWC-MF4Wi4 |
NA |
5 years full |
|
CPRO |
Surface Mount Dome |
MEGApix® 4MP |
|
DWC-MF4Wi6 |
NA |
5 years full |
|
CPRO |
Surface Mount Dome |
MEGApix® 4MP |
|
DWC-MF4Wi8 |
NA |
5 years full |
|
CPRO |
Surface Mount Dome |
MEGApix® 4MP |
|
DWC-MV74Wi28 |
NA |
5 years full |
|
CPRO |
V7 Outdoor dome |
MEGApix® 4MP |
|
DWC-MV74Wi4 |
NA |
5 years full |
|
CPRO |
V7 Outdoor dome |
MEGApix® 4MP |
|
DWC-MV74Wi6 |
NA |
5 years full |
|
CPRO |
V7 Outdoor dome |
MEGApix® 4MP |
|
DWC-MB44iALPR |
NA |
5 years full |
|
CPRO |
Bullet LPR |
MEGApix® 4MP |
|
MEGApix® 720p IP Cameras |
|
|
|
|
|
|
|
DWC-MF10M36TIR |
|
|
|
CPRO |
Flat Dome Vandal |
MEGApix®™ 720P |
|
DWC-MF10M8TIR |
|
|
|
CPRO |
Flat Dome Vandal |
MEGApix®™ 720P |
|
DWC-MF10M28T |
|
|
|
CPRO |
Flat Dome Vandal |
MEGApix®™ 720P |
|
MEGApix® PTZ IP Cameras |
|
|
|
|
|
|
|
DWC-MPTZ230XTW |
NA |
2 years full |
2.1MP/1080p PTZ IP camera |
CPRO |
PTZ |
MEGApix® PTZ |
|
DWC-MPTZ336XW |
replacing: DWC-MPTZ30X |
2 years full |
3MP 36x zoom PTZ IP camera |
Hitron |
PTZ |
MEGApix® PTZ |
|
DWC-MPTZ830XW |
replacing: DWC-MPTZ30X |
2 years full |
4K 30x zoom PTZ IP camera |
Hitron |
PTZ |
MEGApix® PTZ |
|
DWC-MPTZ30X |
NA |
2 years full |
|
Hitron |
PTZ |
MEGApix® 2.1MP |
|
DWC-MPTZ5X |
NA |
2 years full |
|
CPRO |
PTZ |
MEGApix® 2.1MP |
|
DWC-MPTZ5XFM |
NA |
2 years full |
|
CPRO |
PTZ |
MEGApix® 2.1MP |
|
DWC-MPTZ20X |
NA |
2 years full |
|
CPRO |
PTZ |
MEGApix® 2.1MP |
|
DWC-MPTZ20XFM |
NA |
2 years full |
|
CPRO |
PTZ |
MEGApix® 2.1MP |
|
MEGApix® PANO IP Cameras |
|
|
|
|
|
|
|
DWC-PVF5Di1TW |
NA |
5 years full |
5MP fisheye camera |
CPRO |
Fisheye |
MEGApix® |
|
DWC-PVF9Di2TW |
NA |
5 years full |
9MP fisheye camera |
CPRO |
Fisheye |
MEGApix® |
|
DWC-PB6M4T |
NA |
|
|
CPRO |
Same as HD-Analog Wt. Bullet |
MEGApix® PANO™ |
|
DWC-PB2M4TIR |
NA |
|
To be retired upon current Inv. deletion |
CPRO |
Bullet |
MEGApix® PANO™ |
|
DWC-PV2M4T |
NA |
|
|
CPRO |
Vandal Dome |
MEGApix® PANO™ |
|
DWC-PZV2M72T |
NA |
|
PoE Injector Included |
CPRO |
Vandal Dome |
MEGApix® PANO™ |
|
DWC-PF5M1TIR |
NA |
|
|
CPRO |
Fisheye |
MEGApix® PANO™ |
|
DWC-PVF5M1TIR |
NA |
|
|
CPRO |
Vandal Fisheye |
MEGApix® PANO™ |
|
DWC-PVF9M2TIR |
NA |
|
|
CPRO |
9MP Vandal Fisheye |
MEGApix® PANO™ |
|
DWC-PZ21M69T |
NA |
5 years full (per HK 01/17/19) |
|
CPRO |
21MP PANZILLA |
MEGApix® PANO™ |
|
MEGApix® 5MP IP Cameras |
|
|
|
|
|
|
|
DWC-MV85WiATW |
NA |
5 years full |
2.1MP/1080p H.265 Star-Light Plus IP camera |
CPRO |
ultra low-profile vandal dome |
MEGApix® |
|
DWC-MB75Wi4T |
NA |
5 years full |
5MP H.265 Star-Light Plus IP camera |
CPRO |
Bullet |
MEGApix® |
|
DWC-MV75Wi28TW |
NA |
5 years full |
5MP H.265 Star-Light Plus IP camera |
CPRO |
ultra low-profile vandal dome |
MEGApix® |
|
DWC-MV75Wi4TW |
NA |
5 years full |
5MP H.265 Star-Light Plus IP camera |
CPRO |
ultra low-profile vandal dome |
MEGApix® |
|
DWC-MV75Wi6TW |
NA |
5 years full |
5MP H.265 Star-Light Plus IP camera |
CPRO |
ultra low-profile vandal dome |
MEGApix® |
|
DWC-MV45WiATW |
NA |
5 years full |
5MP H.265 Star-Light Plus IP camera |
CPRO |
Snapit vandal dome |
MEGApix® |
|
DWC-MB45Wi650T |
NA |
5 years full |
5MP H.265 Star-Light Plus IP camera |
CPRO |
long range bullet |
MEGApix® |
|
DWC-MB45iALPRT |
NA |
5 years full |
5MP H.265 LPR IP camera |
CPRO |
LPR bullet |
MEGApix® |
|
DWC-MF5Wi4TW |
NA |
5 years full |
5MP H.265 Star-Light Plus IP camera |
CPRO |
ultra low-profile vandal dome |
MEGApix® |
|
DWC-MF5Wi6TW |
NA |
5 years full |
5MP H.265 Star-Light Plus IP camera |
CPRO |
ultra low-profile vandal dome |
MEGApix® |
|
DWC-MF5Wi8TW |
NA |
5 years full |
5MP H.265 Star-Light Plus IP camera |
CPRO |
ultra low-profile vandal dome |
MEGApix® |
|
DWC-MVA5WiAT |
NA |
5 years full |
5MP, vari-focal lens, Star-Light Plus |
CPRO |
vandal ball |
MEGApix® |
|
DWC-MVA5Wi28T |
NA |
5 years full |
5MP, 2.8mm lens, Star-Light Plus |
CPRO |
vandal ball |
MEGApix® |
|
DWC-MB45WiAT |
NA |
5 years full |
5MP bullet camera |
CPRO |
bullet |
MEGApix® |
|
DWC-MV85WiAT |
NA |
5 years full |
5MP vandal dome camera |
CPRO |
vandal dome |
MEGApix® |
|
DWC-MV85DiA |
NA |
5 years full |
5MP vandal dome camera |
CPRO |
Surface Mount Outdoor Dome |
MEGApix® 5MP |
|
DWC-MB45DiA |
NA |
5 years full |
5MP bullet camera |
CPRO |
Bullet |
MEGApix® 5MP |
|
MEGApix® DMP IP Cameras |
|
|
|
|
|
|
|
DWC-MF21M4TIRDMP |
NA |
|
|
CPRO |
ultra-low profile dome |
MEGApix® DMP |
|
DWC-MB721M4TIRDMP |
NA |
|
|
CPRO |
bullet |
MEGApix® DMP |
|
DWC-MV82WiADMP |
NA |
5 years full |
|
CPRO |
vandal dome |
MEGApix® DMP |
|
DWC-MB75Wi4TDMP |
NA |
5 years full |
4MP bullet, DMP integration |
CPRO |
bullet |
MEGApix® |
|
DWC-MB72Wi4TDMP |
NA |
5 years full |
2.1MP bullet, DMP integration |
CPRO |
bullet |
MEGApix® |
|
DWC-MF5Wi4TWDMP |
NA |
5 years full |
4MP ultra low-profile vandal dome, DMP integration |
CPRO |
ultra low-profile vandal dome |
MEGApix® |
|
DWC-MF2Wi4TWDMP |
NA |
5 years full |
2.1MP ultra low-profile vandal dome, DMP integration |
CPRO |
ultra low-profile vandal dome |
MEGApix® |
|
MEGApix® 2.1MP IP Cameras |
|
|
|
|
|
|
|
DWC-MF2Wi28TW |
NA |
5 years full |
2.1MP/1080p H.265 Star-Light Plus IP camera |
CPRO |
ultra low-profile vandal dome |
MEGApix® |
|
DWC-MF2Wi4TW |
NA |
5 years full |
2.1MP/1080p H.265 Star-Light Plus IP camera |
CPRO |
ultra low-profile vandal dome |
MEGApix® |
|
DWC-MV72Wi4ATW |
NA |
5 years full |
2.1MP/1080p H.265 Star-Light Plus IP camera with audio |
CPRO |
ultra low-profile vandal dome |
MEGApix® |
|
DWC-MV72Wi28ATW |
NA |
5 years full |
2.1MP/1080p H.265 Star-Light Plus IP camera with audio |
CPRO |
ultra low-profile vandal dome |
MEGApix® |
|
DWC-MV72Wi28TW |
NA |
5 years full |
2.1MP/1080p H.265 Star-Light Plus IP camera |
CPRO |
ultra low-profile vandal dome |
MEGApix® |
|
DWC-MV72Wi4TW |
NA |
5 years full |
2.1MP/1080p H.265 Star-Light Plus IP camera |
CPRO |
ultra low-profile vandal dome |
MEGApix® |
|
DWC-MV72Wi6TW |
NA |
5 years full |
2.1MP/1080p H.265 Star-Light Plus IP camera |
CPRO |
ultra low-profile vandal dome |
MEGApix® |
|
DWC-MF2Wi4T |
NA |
5 years full |
2.1MP/1080p ultra low-profile camera |
CPRO |
ULP vandal dome |
MEGApix® |
|
DWC-MV82WiAT |
NA |
5 years full |
2.1MP/1080p vandal dome camera |
CPRO |
vandal dome |
MEGApix® |
|
DWC-MB62DiVT |
NA |
5 years full |
Value 2.1MP/1080p bullet camera |
CPRO |
bullet |
MEGApix® |
|
DWC-MV82DiVT |
NA |
5 years full |
Value 2.1MP/1080p vandal dome camera |
CPRO |
vandal dome |
MEGApix® |
|
DWC-MV72Wi28A |
NA |
|
|
CPRO |
V7 Outdoor dome + Audio |
MEGApix® 1080p |
|
DWC-MV72Wi4A |
NA |
|
|
CPRO |
V7 Outdoor dome + Audio |
MEGApix® 1080p |
|
DWC-MV72Wi28 |
NA |
|
|
CPRO |
V7 Outdoor dome |
MEGApix® 1080p |
|
DWC-MV72Wi4 |
NA |
|
|
CPRO |
V7 Outdoor dome |
MEGApix® 1080p |
|
DWC-MV72Wi6 |
NA |
|
|
CPRO |
V7 Outdoor dome |
MEGApix® 1080p |
|
DWC-MD421D |
Updated: 3/29/17 |
|
|
CPRO |
Snapit Indoor Dome |
MEGApix® 1080p (Ambarella) |
|
DWC-MD421TIR |
Updated: 3/29/17 |
|
|
CPRO |
Snapit Indoor Dome |
MEGApix® 1080p (Ambarella) |
|
DWC-MV421D |
Update: 4/10/17 |
|
|
CPRO |
Snapit Outdoor Dome |
MEGApix® 1080p (Ambarella) |
|
DWC-MV421TIR |
Update: 4/10/17 |
|
|
CPRO |
Snapit Outdoor Dome |
MEGApix® 1080p (Ambarella) |
|
DWC-MD421DB |
Updated: 3/29/17 |
|
|
CPRO |
Snapit Indoor Dome |
MEGApix® 1080p (Ambarella) |
|
DWC-MD421TIRB |
Updated: 3/29/17 |
|
|
CPRO |
Snapit Indoor Dome |
MEGApix® 1080p (Ambarella) |
|
DWC-MV421DB |
Update: 4/10/17 |
|
|
CPRO |
Snapit Outdoor Dome |
MEGApix® 1080p (Ambarella) |
|
DWC-MV421TIRB |
Update: 4/10/17 |
|
|
CPRO |
Snapit Outdoor Dome |
MEGApix® 1080p (Ambarella) |
|
DWC-MF21M4TIR |
Update: 4/25/17 |
|
|
CPRO |
Surface Mount Dome |
MEGApix® 1080p (Ambarella) |
|
DWC-MF21M8TIR |
Update: 4/25/17 |
|
|
CPRO |
Surface Mount Dome |
MEGApix® 1080p (Ambarella) |
|
DWC-MF21M28T |
Update: 4/25/17 |
|
|
CPRO |
Surface Mount Dome |
MEGApix® 1080p (Ambarella) |
|
DWC-MB421TIR |
Updated: 2/24/17 |
|
|
CPRO |
New Bullet |
MEGApix® 1080p (Ambarella) |
|
DWC-MB721M4TIR |
Update: 4/25/17 |
|
|
CPRO |
Bullet |
MEGApix® 1080p (Ambarella) |
|
DWC-MB721M8TIR |
Update: 4/25/17 |
|
|
CPRO |
Bullet |
MEGApix® 1080p (Ambarella) |
|
DWC-MV72Di28T |
Replacing: DWC-MV72i28V |
5 years full |
2.1MP/1080p IP camera, 2.8mm |
CPRO |
ultra low-profile vandal dome |
MEGApix® |
|
DWC-MD72Di28T |
Replacing: DWC-MD72i28V |
5 years full |
2.1MP/1080p IP camera, 2.8mm |
CPRO |
indoor dome |
MEGApix® |
|
DWC-MVA2WiAT |
NA |
5 years full |
2.1MP/1080p, vari-focal lens, Star-Light Plus |
CPRO |
vandal ball |
MEGApix® |
|
DWC-MVA2Wi28T |
NA |
5 years full |
2.1MP/1080p, 2.8mm lens, Star-Light Plus |
CPRO |
vandal ball |
MEGApix® |
|
DWC-MV72Di4TW |
NA |
5 years full |
2.1MP/1080p H.265 IP camera |
CPRO |
ultra low-profile vandal dome |
MEGApix® |
|
DWC-MB72Wi4T |
NA |
5 years full |
2.1MP/1080p H.265 Star-Light Plus IP camera |
CPRO |
bullet |
MEGApix® |
|
DWC-MB62DiV |
NA |
|
2.8~12mm varifocal lens |
CPRO |
bullet |
MEGApix® |
|
DWC-MB72Di36 |
NA |
|
3.6mm fixed lens |
CPRO |
bullet |
MEGApix® |
|
DWC-MD72Di36 |
NA |
|
3.6mm fixed lens |
CPRO |
Indoor dome |
MEGApix® |
|
DWC-MF2Di36 |
NA |
|
3.6mm fixed lens |
CPRO |
ultra-low profile dome |
MEGApix® |
|
DWC-MV72Di36 |
NA |
|
3.6mm fixed lens |
CPRO |
vandal dome |
MEGApix® |
|
DWC-MV82DiV |
NA |
|
2.8~12mm varifocal lens |
CPRO |
vandal dome |
MEGApix® |
|
MEGApix® CaaS IP Cameras |
|
|
|
|
|
|
|
DWC-MB44WiAC6 - (64G) |
NA |
5 years full |
4MP bullet, 64GB and 128GB options |
CPRO |
Bullet |
MEGApix® CaaS™ |
|
DWC-MB44WiAC1 -(128G) |
||||||
|
DWC-MB44WiAC2 -(256G) |
||||||
|
DWC-MB44Wi650C6 - (64G) |
NA |
5 years full |
4MP long-range bullet, 64GB and 128GB options |
CPRO |
Bullet |
MEGApix® CaaS™ |
|
DWC-MB44Wi650C1 -(128G) |
||||||
|
DWC-MB44Wi650C2 -(256G) |
||||||
|
DWC-MV84WiAC6 |
NA |
|
64GB |
CPRO |
Vandal Dome |
MEGApix® CaaS |
|
DWC-MV84WiAC1 |
NA |
|
128GB |
CPRO |
Vandal Dome |
MEGApix® CaaS |
|
DWC-MF4Wi4C6 |
NA |
|
64GB |
CPRO |
Flat Vandal Dome |
MEGApix® CaaS |
|
DWC-MF4Wi4C1 |
NA |
|
128GB |
CPRO |
Flat Vandal Dome |
MEGApix® CaaS |
|
DWC-MF4Wi6C6 |
NA |
|
64GB |
CPRO |
Flat Vandal Dome |
MEGApix® CaaS |
|
DWC-MF4Wi6C1 |
NA |
|
128GB |
CPRO |
Flat Vandal Dome |
MEGApix® CaaS |
|
DWC-PVF5M1TIRC6 |
NA |
|
64GB |
CPRO |
5MP Vandal Fisheye |
MEGApix® CaaS |
|
DWC-PVF5M1TIRC1 |
NA |
|
128GB |
CPRO |
5MP Vandal Fisheye |
MEGApix® CaaS |
|
DWC-MB44LPRC6 |
NA |
|
64GB |
CPRO |
4MP LPR |
MEGApix® CaaS |
|
DWC-MB44LPRC1 |
NA |
|
128GB |
CPRO |
4MP LPR |
MEGApix® CaaS |
|
DWC-MV84WiAC2 |
NA |
5 years full |
256GB model |
CPRO |
vandal dome |
MEGApix® CaaS |
|
DWC-MF4Wi4C2 |
NA |
5 years full |
256GB model |
CPRO |
vandal dome |
MEGApix® CaaS |
|
DWC-MF4Wi6C2 |
NA |
5 years full |
256GB model |
CPRO |
vandal dome |
MEGApix® CaaS |
|
DWC-PVF5M1TIRC2 |
NA |
5 years full |
256GB model |
CPRO |
fisheye |
MEGApix® CaaS |
|
DWC-MB44LPRC2 |
NA |
5 years full |
256GB model |
CPRO |
LPR |
MEGApix® CaaS |
|
MEGApix® IVA+ IP Cameras |
|
|
|
|
|
|
|
DWC-MVC8WiATW |
NA |
5 years full |
4K low-profile vandal dome IP camera with IVA |
CPRO |
low-profile vandal dome |
MEGApix® IVA |
|
DWC-MPVC8WiATW |
NA |
5 years full |
4K low-profile vandal dome IP camera with IVA+ |
CPRO |
low-profile vandal dome |
MEGApix® IVA |
|
DWC-MVC8Wi28TW |
NA |
5 years full |
4K low-profile vandal dome IP camera with IVA |
CPRO |
low-profile vandal dome |
MEGApix® IVA |
|
DWC-MPVC8Wi28TW |
NA |
5 years full |
4K low-profile vandal dome IP camera with IVA+ |
CPRO |
low-profile vandal dome |
MEGApix® IVA |
|
DWC-MB48WiATW |
NA |
5 years full |
4K bullet IP camera with IVA |
CPRO |
bullet |
MEGApix® IVA |
|
DWC-MPB48WiATW |
NA |
5 years full |
4K bullet IP camera with IVA+ |
CPRO |
bullet |
MEGApix® IVA |
|
DWC-MVD8WiATW |
NA |
5 years full |
4K galaxy ball IP camera with IVA |
CPRO |
galaxy ball |
MEGApix® IVA |
|
DWC-MPVD8WiATW |
NA |
5 years full |
4K galaxy ball IP camera with IVA+ |
CPRO |
galaxy ball |
MEGApix® IVA |
|
DWC-MVD8Wi28TW |
NA |
5 years full |
4K galaxy ball IP camera with IVA |
CPRO |
galaxy ball |
MEGApix® IVA |
|
DWC-MPVD8Wi28TW |
NA |
5 years full |
4K galaxy ball IP camera with IVA+ |
CPRO |
galaxy ball |
MEGApix® IVA |
|
DWC-MBW8Wi2TW |
NA |
5 years full |
4K panoramic bullet IP camera with IVA |
CPRO |
Panoramic bullet |
MEGApix® IVA |
|
DWC-MPBW8Wi2TW |
NA |
5 years full |
4K panoramic bullet IP camera with IVA+ |
CPRO |
Panoramic bullet |
MEGApix® IVA |
|
DWC-MPB45Wi650T |
NA |
5 years full |
|
CPRO |
bullet |
MEGApix IVA+ |
|
DWC-MPB45WiAT |
NA |
5 years full |
|
CPRO |
bullet |
MEGApix IVA+ |
|
DWC-MPB72Wi4T |
NA |
5 years full |
|
CPRO |
bullet |
MEGApix IVA+ |
|
DWC-MPB75Wi4T |
NA |
5 years full |
|
CPRO |
bullet |
MEGApix IVA+ |
|
DWC-MPF2Wi28TW, |
NA |
5 years full |
|
CPRO |
ultra low-profile vandal dome |
MEGApix IVA+ |
|
DWC-MPF2Wi4TW |
||||||
|
DWC-MPF5Wi4TW, DWC-MPF5Wi6TW, DWC-MPF5Wi8TW |
NA |
5 years full |
|
CPRO |
ultra low-profile vandal dome |
MEGApix IVA+ |
|
DWC-MPV45WiATW |
NA |
5 years full |
|
CPRO |
Snapit vandal dome |
MEGApix IVA+ |
|
DWC-MPV72Wi28ATW, DWC-MPV72Wi4ATW |
NA |
5 years full |
|
CPRO |
ultra low-profile vandal dome |
MEGApix IVA+ |
|
DWC-MPV72Wi28TW, DWC-MPV72Wi4TW, DWC-MPV72Wi6TW |
NA |
5 years full |
|
CPRO |
ultra low-profile vandal dome |
MEGApix IVA+ |
|
DWC-MPV75Wi28TW, DWC-MPV75Wi4TW, DWC-MPV75Wi6TW |
NA |
5 years full |
|
CPRO |
ultra low-profile vandal dome |
MEGApix IVA+ |
|
DWC-MPV82WiATW |
NA |
5 years full |
|
CPRO |
low-profile vandal dome |
MEGApix IVA+ |
|
DWC-MPV85WiATW |
NA |
5 years full |
|
CPRO |
low-profile vandal dome |
MEGApix IVA+ |
|
DWC-MPVA2Wi28T |
NA |
5 years full |
|
CPRO |
vandal ball |
MEGApix IVA+ |
|
DWC-MPVA2WiAT |
NA |
5 years full |
|
CPRO |
vandal ball |
MEGApix IVA+ |
|
DWC-MPVA5WiAT |
NA |
5 years full |
|
CPRO |
vandal ball |
MEGApix IVA+ |
|
DWC-MPVA5Wi28T |
NA |
5 years full |
|
CPRO |
vandal ball |
MEGApix IVA+ |
|
DWC-PPVF5Di1TW |
NA |
5 years full |
|
CPRO |
fisheye |
MEGApix IVA+ |
|
DWC-PPVF9Di2TW |
NA |
5 years full |
|
CPRO |
fisheye |
MEGApix IVA+ |
|
TVT Cameras |
||||||
|
Part Number |
Is this a replacement for a product? |
Warranty |
Description |
Manufacturer |
Housing |
Family |
|
MEGApix® 5MP |
|
|
|
|
|
|
|
DWC-MB95Wi28T |
replacing DWC-MB94Wi28T |
5 years full |
5MP bullet IP camera |
TVT |
bullet |
MEGApix® |
|
DWC-MB95Wi36T |
replacing DWC-MB94Wi36T |
5 years full |
5MP bullet IP camera |
TVT |
bullet |
MEGApix® |
|
DWC-MT95Wi28TW |
replacing DWC-MT94Wi28T |
5 years full |
5MP turret IP camera |
TVT |
turret |
MEGApix® |
|
DWC-MT95Wi36TW |
replacing DWC-MT94Wi36T |
5 years full |
5MP turret IP camera |
TVT |
turret |
MEGApix® |
|
DWC-MT95WiATW |
replacing DWC-MT94WiAT |
5 years full |
5MP turret IP camera |
TVT |
turret |
MEGApix® |
|
DWC-MV95Wi28TW |
replacing DWC-MV94Wi28T |
5 years full |
5MP vandal dome camera |
TVT |
vandal dome |
MEGApix® |
|
DWC-MV95Wi36TW |
replacing DWC-MV94Wi36T |
5 years full |
5MP vandal dome camera |
TVT |
vandal dome |
MEGApix® |
|
DWC-MT95WW28TW |
NA |
5 years full |
5MP turret IP camera white light LEDs |
TVT |
turret |
MEGApix® |
|
DWC-MV95WiATW |
replacing DWC-MV94WiAT |
5 years full |
5MP vandal dome camera |
TVT |
vandal dome |
MEGApix® |
|
MEGApix 4MP Analytics series IP cameras |
|
|
|
|
|
|
|
DWC-MTT4Wi28 |
|
5 years full |
|
TVT |
Turret Camera |
MEGApix® 4MP |
|
DWC-MTT4Wi36 |
|
5 years full |
|
TVT |
Turret Camera |
MEGApix® 4MP |
|
DWC-MTT4Wi6 |
|
5 years full |
|
TVT |
Turret Camera |
MEGApix® 4MP |
|
DWC-MTT4WiA |
|
5 years full |
|
TVT |
Turret Camera |
MEGApix® 4MP |
|
DWC-MVT4Wi28 |
NA |
5 years full |
|
TVT |
Vandal Dome |
MEGApix® 4MP |
|
DWC-MVT4Wi36 |
NA |
5 years full |
|
TVT |
Vandal Dome |
MEGApix® 4MP |
|
DWC-MVT4Wi6 |
NA |
5 years full |
|
TVT |
Vandal Dome |
MEGApix® 4MP |
|
DWC-MVT4WiA |
NA |
5 years full |
|
TVT |
Vandal Dome |
MEGApix® 4MP |
|
DWC-MBT4Wi28 |
NA |
5 years full |
|
TVT |
Bullet |
MEGApix® 4MP |
|
DWC-MBT4Wi36 |
NA |
5 years full |
|
TVT |
Bullet |
MEGApix® 4MP |
|
MEGApix® 4MP IP Cameras |
|
|
|
|
|
|
|
DWC-MB94Wi28T |
replacing: DWC-MBT4Wi28 |
5 years full |
MEGApix 4MP |
TVT |
bullet |
MEGApix basic analytics |
|
DWC-MB94Wi36T |
replacing: DWC-MBT4Wi36 |
5 years full |
MEGApix 4MP |
TVT |
bullet |
MEGApix basic analytics |
|
DWC-MV94Wi28T |
replacing: DWC-MVT4Wi28 |
5 years full |
MEGApix 4MP |
TVT |
vandal dome |
MEGApix basic analytics |
|
DWC-MT94Wi28T |
replacing: DWC-MTT4Wi28 |
5 years full |
MEGApix 4MP |
TVT |
turret |
MEGApix basic analytics |
|
DWC-MV94Wi36T |
replacing: DWC-MVT4Wi36 |
5 years full |
MEGApix 4MP |
TVT |
vandal dome |
MEGApix basic analytics |
|
DWC-MV94WiAT |
replacing: DWC-MVT4WiA |
5 years full |
MEGApix 4MP |
TVT |
vandal dome |
MEGApix basic analytics |
|
DWC-MT94Wi36T |
replacing: DWC-MTT4Wi36 |
5 years full |
MEGApix 4MP |
TVT |
turret |
MEGApix basic analytics |
|
DWC-MT94WiAT |
replacing: DWC-MTT4WiA |
5 years full |
MEGApix 4MP |
TVT |
turret |
MEGApix basic analytics |
