VMAX G4 - Using a Barcode Scanner

Updated

Using a Barcode Scanner with VMAX G4 Series

-----------------------------------

Affected Roles: Administrator

Firmware Version: 1.0.13.11 (or newer)

Last Edit: October 14, 2025

-----------------------------------

Barcode Scanner Support

Upon the installation of firmware update 1.0.13.11, the VMAX G4 and VMAX A1 G4 recording units support the use of USB barcode scanners for the purpose of automatically populating recorder information.

This article will provide instructions for how to use a barcode scanner while operating the recorder locally.



Supported/Affected Devices:

  • VMAX G4 Series
  • VMAX A1 G4 Series



Installing and Using a Barcode Scanner

To use a barcode scanner with a VMAX G4 or VMAX A1 G4 recorder:

  1. Connect a USB barcode scanner to any available USB port of the recorder.
  2. Log in to the recorder as the Administrator and right-click in the viewing area, then select “Menu”.

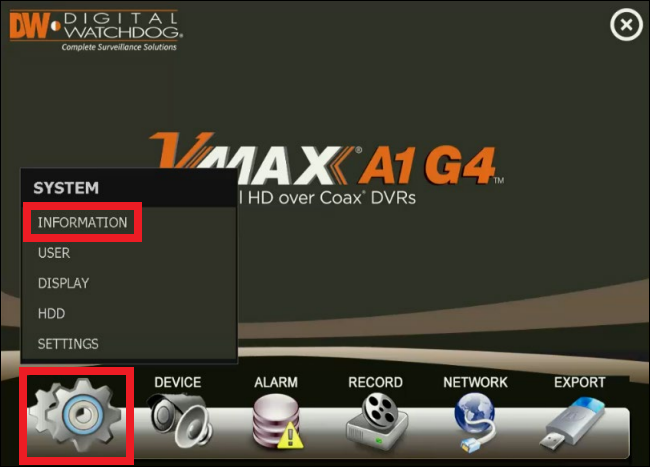

  3. Click on the System icon and open the “Information” menu.



  1. Click in the “Serial Number” field to prompt the recorders virtual keyboard.
  2. Use the barcode scanner and scan the recorder’s serial number sticker. The serial number will then automatically populate onscreen.
  3. Save the changes then close the recorder’s settings menu.
