DW Technical Bulletin
To: DW® Employees
Date: May 8, 2023
Re: DWC-GPLT-W Hardware Update

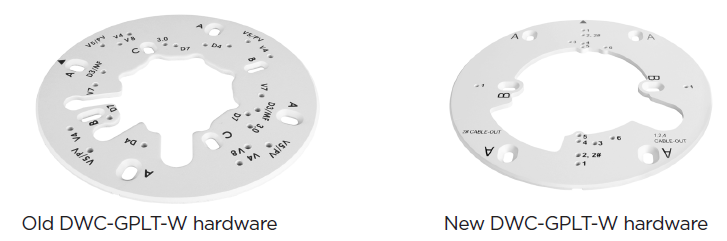

DWC-GPLT-W Hardware Update
-----------------------------------
The optimized DWC-GPLT-W hardware is a simplified, straightforward design to help installers distinguish the mounting points on the hardware. The new hardware comes with all the included screws for each compatible camera.
Refer to the table below for supported products.
|
Mounting holes |
Compatible cameras |
Screw size |
|
Mounting point 1 |
DWC-V4 models |
20mm screws |
|
DWC-MV4 models |
20mm screw |
|
|
DWC-V6 models |
20mm screw |
|
|
Mounting point 2, 2# |
DWC-MF and DWC-MPF models |
20mm screw |
|
DWC-MV8 and DWC-MPV8 models |
23mm screw |
|
|
DWC-MVC and DWC-MPVC models |
20mm screw |
|
|
DWC-MVD and DWC-MPVD models |
35mm screws |
|
|
DWC-PVF and DWC-PPVF models |
20mm screw |
|
|
Mounting point 4 |
DWC-MV7 and DWC-MPV7 models |
20mm screw |
|
DWC-V7 models |
20mm screw |
|
|
DWC-MVA and DWC-MPVA models |
20mm screw |
|
|
DWC-VA models |
20mm screw |
|
|
DWC-D4 models |
20mm screw |
|
|
DWC-MF and DWC-MPF models OLD HARDWARE |
20mm screw + rubber gasket |
|
|
DWC-MV8 and DWC-MPV8 models OLD HARDWARE |
20mm screw + rubber gasket |
|
|
DWC-PVF and DWC-PPVF models OLD HARDWARE |
20mm screw + rubber gasket |
|
|
Mounting point 5 |
DWC-D3 models |
20mm screw |
|
DWC-MD7 models |
20mm screw |
|
|
Mounting point 6 |
DWC-MD4 models |
20mm screw |
