DW Spectrum - Updating ARM Firmware for CloudCam

Updated

Updating DW Spectrum Edge/ARM Firmware for CloudCam

-----------------------------------

Affected Roles:  Owner, Administrator

Related Digital Watchdog VMS Apps:  DW Spectrum Professional

Last Edit:  June 21, 2024

-----------------------------------



Updating CloudCam

The DW CloudCam series are miniature, self-contained recording servers housed within the IP camera itself. In addition to the regular IP camera functions of capturing and streaming video, each CloudCam comes equipped with an ARM version of DW Spectrum. Periodically, this firmware will need to be updated to ensure continued operation.

This article will outline the recommended process when updating firmware for a DW CloudCam camera.



**NOTE:  It is recommended to create a database backup before and after applying a DW Spectrum update. You can create a DW Spectrum database backup using the Backup and Restore feature within the DW Spectrum Client desktop management software.

**NOTE: For any troubleshooting CloudCam recording issues, refer to the article – MEGApix CloudCam Camera Troubleshooting



Supported/Affected Devices:

  • DW MEGApix CloudCam Series



Updating DW Spectrum ARM Firmware

STEP 1: Download DW Spectrum ARM for CloudCam

To download the latest firmware for the camera:

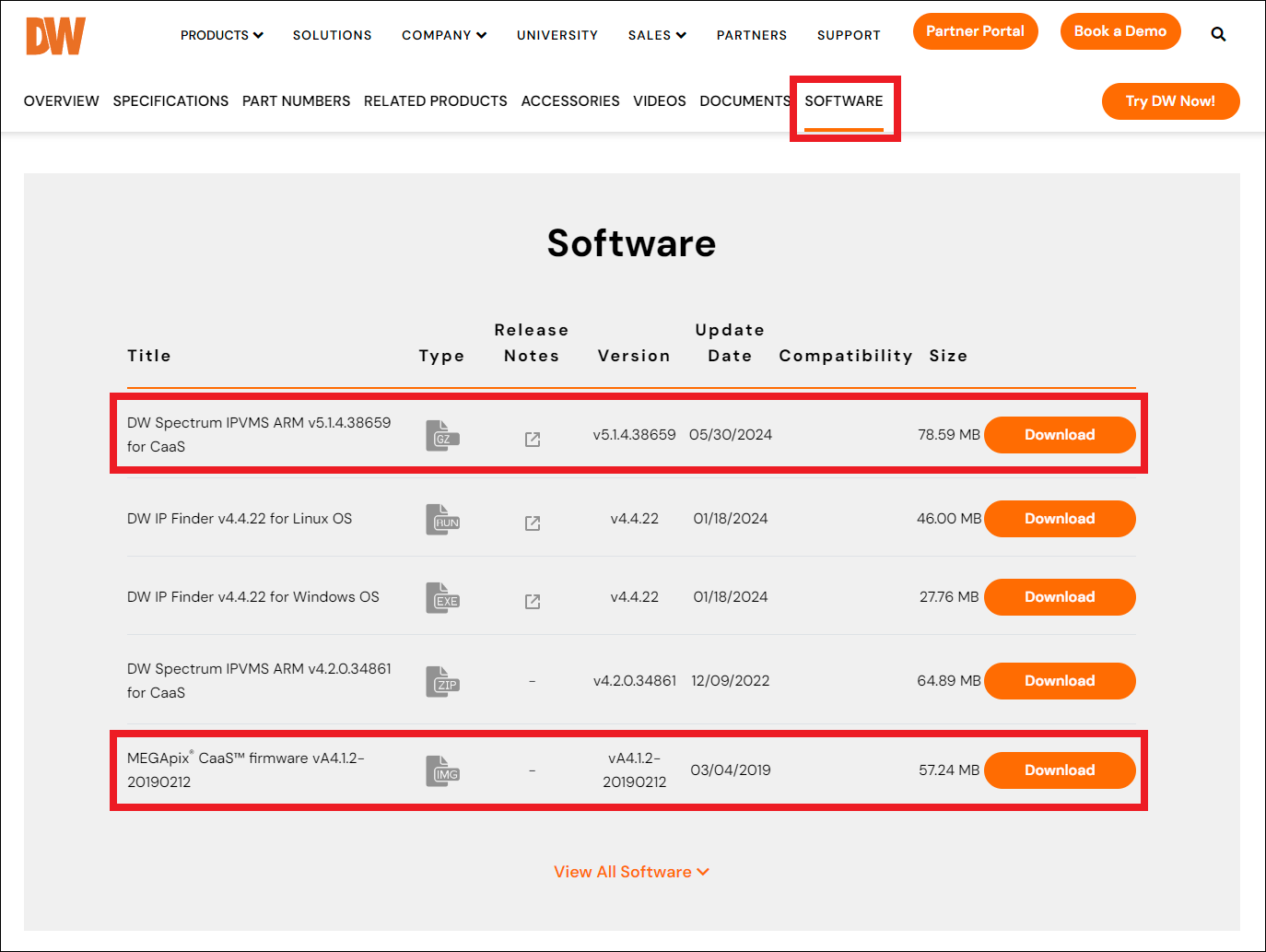

  1. Visit https://digital-watchdog.com and click the magnifying glass icon in the top-right of the window, then search for your CloudCam camera model’s product page.
  2. From the camera’s product page, click on the “Software” tab.

DW MEGApix CloudCam cameras use two different firmware types when operating as its own self-contained server. To update DW Spectrum in the CaaS camera,

    • DW Spectrum ARM for CloudCam – specialized camera firmware responsible for providing DW Spectrum media services such as video recording, system configurations, system merging, etc.
    • DW MEGApix CloudCam Camera Firmware – general camera firmware responsible for running regular IP camera services such as video streaming, security authentication, etc.

Download the DW Spectrum ARM for CloudCam firmware file.



STEP 2: SD Card Format

If there have been any recording issues with the CloudCam camera, formatting the camera’s SD Memory Card may help to clear any corruption from the storage.



**CRITICAL NOTE: Be aware that this will delete the media files that are stored in the CloudCam camera, including video archives. If the recorded data must be kept, please contact DW Technical Support so that the technical support team can verify that no other troubleshooting steps are necessary before formatting the SD Card.



To format the camera’s SD Memory Card:

  1. Visit the camera’s web client by either manually entering the camera’s IP address or through a DW Spectrum Client connection.
  2. Click on “Setup” and select the Edge menu tab.
  3. Click the STOP button to stop the DW Spectrum Edge Server program. Formatting the SD Memory Card is not possible while the Edge Server is still running.
  4. Navigate to the Edge > Storage menu and select the mounted SD Memory Card from the Storage List.





  1. After selecting the SD Memory Card, click the FORMAT button to delete all contents stored in the SD Memory Card.
  2. Allow the formatting process to be completed. Once finished, click the UNMOUNT button.
  3. Wait a moment then MOUNT the memory card, reinstall the DW Spectrum Edge/ARM program and START the Edge Server program again.





STEP 3: Upload the DW Spectrum ARM for CloudCam File

To apply the updated ARM file to the CloudCam camera:

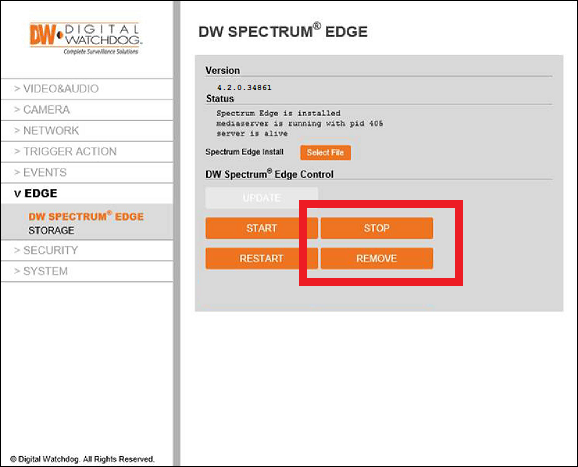

  1. Click on “Setup” and select the Edge menu tab.
  2. Click the STOP button to stop the DW Spectrum Edge service.
  3. Click the Select File button and select the ARM file for the camera.
  4. Click the Update button to update the ARM file.
  5. Once the update has completed, click the START button to start the DW Spectrum Edge service again.



**NOTE:  If the DW Spectrum Edge Server is not functioning properly, you can remove the Edge file from the CloudCam camera, then attempt to reinstall the ARM file.
