MEGApix - DWC-PVX20WATW Pre-Configuration

Updated



Technical Bulletin

To:  DW® Customers

Date:  May 4, 2023

Re:  Adding JSON and DLL files to servers for DWC-PVX20WATW installation



DWC-PVX20WATW Pre-Configuration

-----------------------------------

Affected Model Numbers:  DWC-PVX20WATW

Related Software: DW Spectrum v4.2

Last Edit: August 2, 2024

-----------------------------------



Pre-Configuration File Requirement for DW Spectrum v4.2

For system owners that are using a MEGApix DWC-PVX20WATW multi-sensor camera with a system still using DW Spectrum IPVMS Version 4.2, the application of a JSON file and DLL file to the DW Spectrum Server will be necessary to utilize one (1) recording licenses for the entire camera, rather than needing four (4) individual licenses for each lens sensor module.

The information below will outline the download locations and instructions for making these changes to the server. This process must be completed directly on the computer hardware that is hosting the DW Spectrum Server software application.



NOTE:  It is understandable that there are some circumstances where upgrading to the most current version of DW Spectrum IPVMS may not be practical for all users, especially when using older or underpowered systems. Otherwise, it is typically recommended to use the most recent build to ensure that bugfixes, quality-of-life improvements and feature additions can be applied to the system. If you are unsure about upgrading the version of your system, you may consult with your DW Representative as needed.



Downloading the Files

Use the links below to obtain the JSON file and DLL file. These files will be compressed into a folder upon download and a compression software (Winzip, Winrar, etc.) is needed to unzip the folder.



Applying the Files to the Server

After downloading the JSON file and DLL file using the links above:

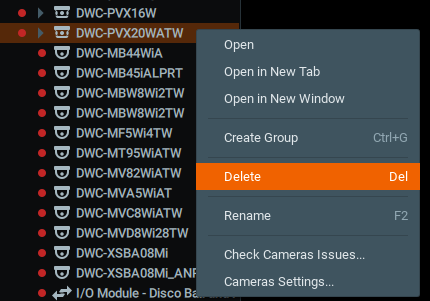

  1. If the DWC-PVX20WATW camera is already added to the DW Spectrum Server and appears within its Resource Tree (left-panel of the client), remove the camera from the DW Spectrum Server.



  1. Stop the media server application.
    1. For Windows – Right-click on the media server icon that appears in the Windows system tray and select “Stop Server (started)”.



    1. For Ubuntu Linux – Open the Terminal application and use the following commands.
      1. To gain root administrator rights, use the command:

sudo su

      1. The system will request the administrator password. The text characters will be hidden and not display as you type. For DW Blackjack units, the default password is:
        • DW Blackjack units sold with Ubuntu 16.04 – admin
        • DW Blackjack units sold with Ubuntu 18.04 – Dw5pectrum
      2. Once root administrator rights have been gained, use the command:

service digitalwatchdog-mediaserver stop



  1. Copy and paste the downloaded files into the following folder locations.
    1. ‘resource_data.json’ file location:
      • For Windows – C:\Program Files\Digital Watchdog\DW Spectrum\MediaServer
      • For Ubuntu Linux – /opt/digitalwatchdog/mediaserver/bin/



    1. ‘dw_edge_analytics_plugin.dll’ file location:
      1. For Windows – C:\Program Files\Digital Watchdog\DW Spectrum\MediaServer\plugins\



  1.  Start the mediaserver application again.
    1. For Windows – Right-click on the media server icon that appears in the Windows system tray and select “Start Server (stopped)”.
    2. For Ubuntu Linux – In the Terminal application and as the root administrator, use the command:

service digitalwatchdog-mediaserver start



  1. Once the DW Spectrum Server application has finished restarting, you may re-add the DWC-PVX20WATW camera to the system and only one (1) recording license will be needed for the camera.



This completes the pre-configuration instructions for the DWC-PVX20WATW multi-sensor camera being used with DW Spectrum Server v4.2.







______________________________________________________________________________

For More Information or Technical Support

DW Technical Support: https://www.digital-watchdog.com/contact-tech-support/

DW Sales: sales@digital-watchdog.com | www.digital-watchdog.com

Rev: 06/25                              Copyright © DW. All rights reserved. Specifications and pricing subject to change without notice.
