Upgrading Firmware For A VMAX A1 (2.1MP)

Updated

How To Upgrade Firmware for a VMAX A1 (2.1 MP)

-----------------------------------

Affected Roles:  Administrator

Complexity:  Low to Medium

Last Edit:  August 1, 2024

-----------------------------------



DISCONTINUED PRODUCT:  As of October 2021, the VMAX A1 Plus (2.1 MP) DVR Series is a discontinued product and is no longer eligible for future firmware updates.



Firmware Upgrades

Firmware is a type of computing software that is used in the management and operation of nearly all electronics.  The VMAX A1 Series DVRs utilize firmware versions to manage camera communication, user interface controls, display, and recording settings for every interaction by the user.

Periodically, the firmware version may need to be upgraded to apply new features, improvements, and other content to the DVR.

This article will explain the process for upgrading Firmware for the VMAX A1 Series DVRs using either File Transfer Protocol (FTP) or a USB stick.



Supported/Affected Devices

  • VMAX A1 Series (2.1 MP)



Upgrading Firmware

Firmware upgrades for the VMAX A1 Series will need to be performed directly at the DVR.  Connect a display monitor and USB mouse to the DVR, so that you can control the user interface of the recording unit.

If you are unsure what type of display (HDMI or VGA) that your DVR supports, please consult the User Manual.



Upgrade Using FTP Function

The FTP upgrade option permits users to upgrade DVR firmware by communicating with an external FTP server over the Internet.  The last firmware version (v8.2.0.2.13) can be downloaded and installed from the FTP server.



**NOTE:  The FTP function requires a stable network and Internet connection.  If you have not set up the DVR Network settings, please read Network Setup For A VMAX A1 (2.1 MP).



To Upgrade Using FTP:

  1. Log in as the Admin or as a user with Administrator privileges.

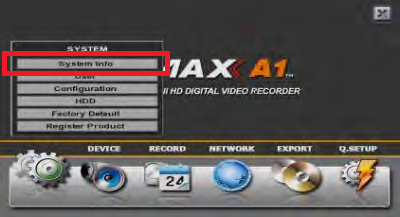

  1. Right-click with the mouse and select Setup Menu.  Navigate to the System Information menu.

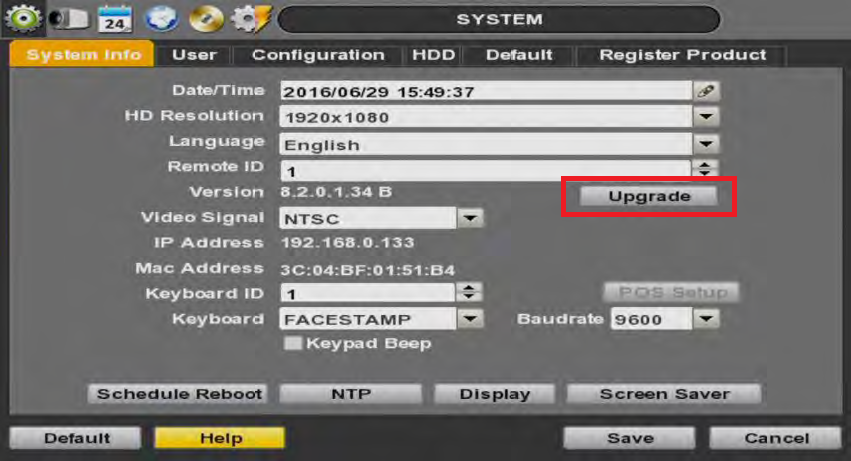

  1. Click the Upgrade button, located next to the current firmware Version.

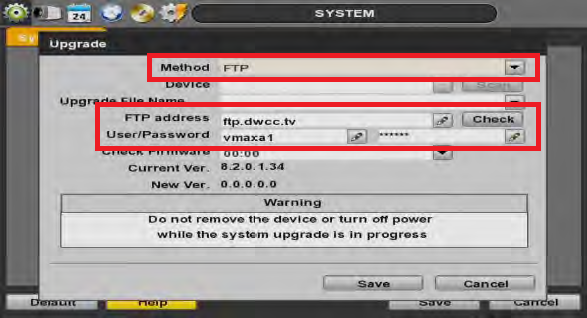

  1. Set the Method to FTP and confirm the following:
  • FTP Address:  ftp.dwcc.tv
  • User/Password:  vmaxa1 (both boxes)

Click the Check button to check for available updates.





  1. Once a new firmware version is detected, click the Start button.  The upgrade progress will display in the Progress bar.  Allow the DVR to download and install the update.  Once the upgrade is complete, the DVR will automatically reboot and begin using the new firmware.



Upgrade Using USB Stick

The USB upgrade option permits users to upgrade DVR firmware by inserting a USB stick and uploading the firmware file directly to the System.

The USB stick must use FAT or FAT32 format and should not exceed 32 GB in capacity.



Downloading the Firmware File for USB Upgrade

If you are upgrading the DVR firmware using a USB stick, you must first prepare a new firmware file for uploading.

To download the latest DVR firmware file:

  1. Open a web browser and visit the DW Resource Library.

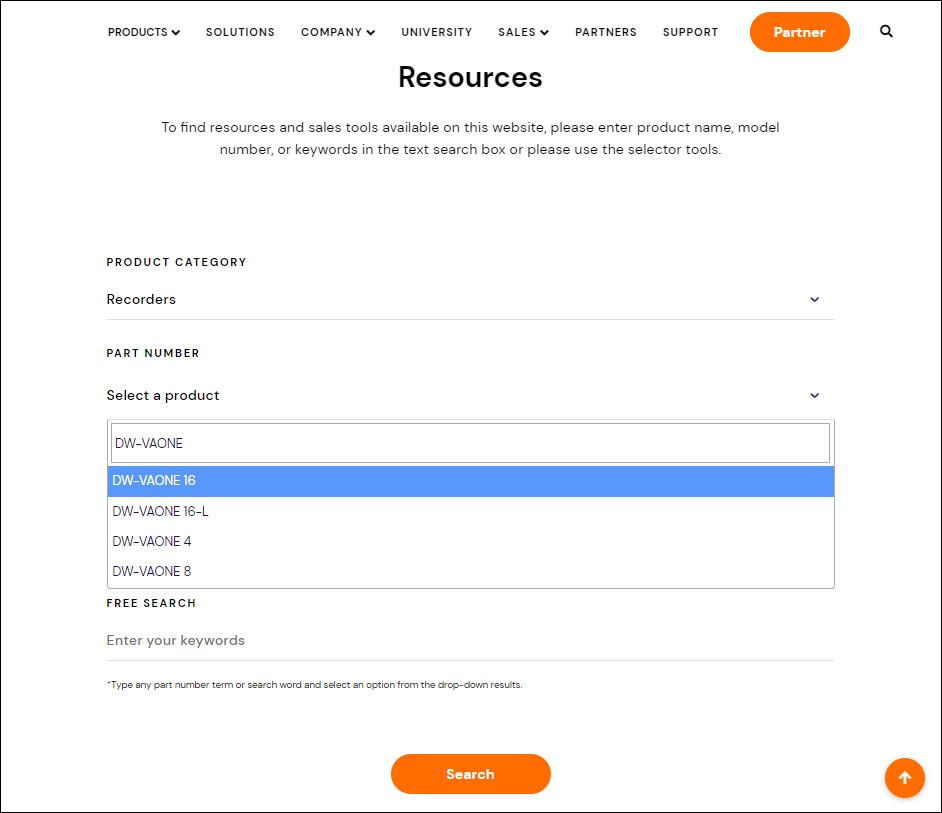

  1. Use the Resource Library and search for your DVR model:
    1. Product Category – click in the drop-down and select “Recorders”, then enter the Part Number of the DVR into the search box. Select your DVR part number from the results.
    2. Free Search – enter the product or model number of your DVR unit into the search box. Select your DVR part number from the results.



**NOTE:  The DVR’s part number is located on the sticker located on top of the DVR.





  1. After selecting the Part Number, click the Search button.

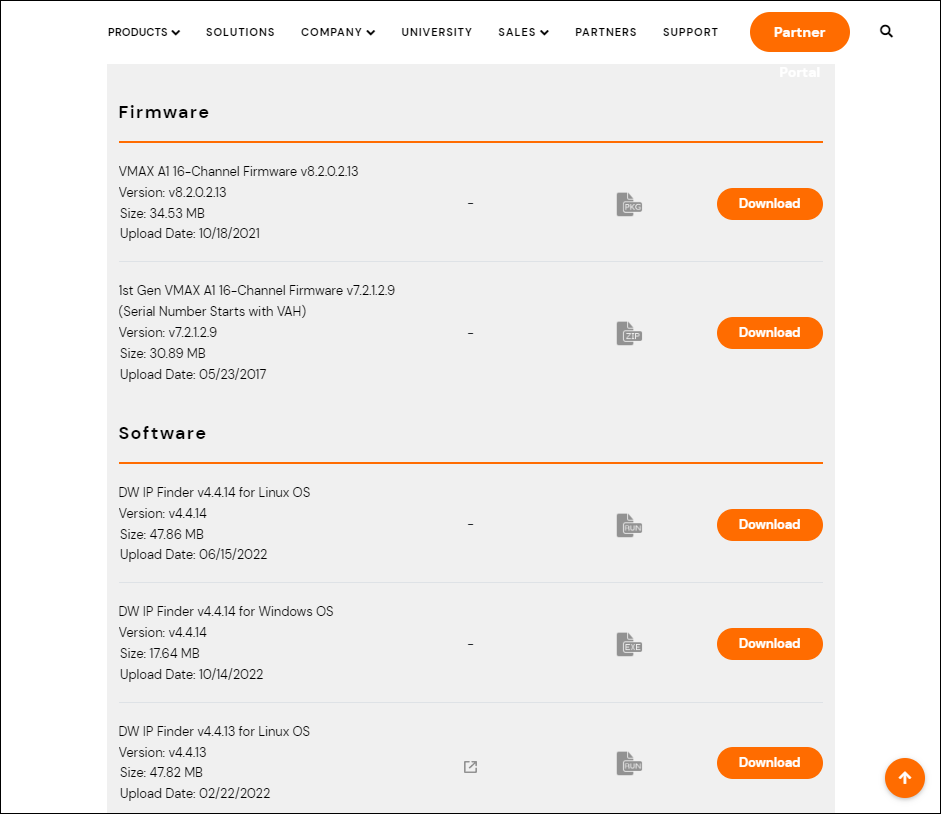

In the Results, scroll down and locate the “Firmware” section.



  1. Download the correct Version of firmware for your DVR.

If you are performing a USB upgrade, copy the firmware file to a blank USB stick, formatted to either FAT format or FAT32 format.



**NOTE:  DO NOT store the firmware file in a folder. If the new firmware is in a folder, on the USB at the time of upgrade, the DVR will not be able to detect the upgrade file.





Upgrade Using a USB Stick

  1. Insert the USB stick to the DVR.  There is a USB port on the front panel and on the rear panel of the DVR.



  1. If you have not already done so, log into the DVR as the Admin or as a user with Administrator privileges.



  1. Right-click with the mouse and select Setup Menu.  Navigate to the System Information menu.







  1. Click the Upgrade button, located next to the current firmware Version.





  1. Set the Method to USB, then click on the Scan button.  The DVR will detect the USB and display its model information in the Device box.



  1. Click the Start button.  The upgrade progress will display in the Progress bar.  Allow the DVR to download and install the update.  Once the upgrade is complete, the DVR will automatically reboot and begin using the new firmware.



  1. Remove the USB stick once the unit is done rebooting.
