DW MEGApix - CloudCam Explained

DW MEGApix CloudCam Explained

-----------------------------------

Affected Roles: Administrator, Power Users

Related Digital Watchdog VMS Apps: DW Spectrum Professional

Last Edit: October 14, 2024

-----------------------------------

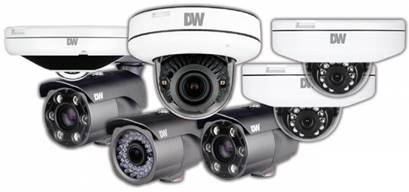

MEGApix Caas Camera Series

DW’s CloudCam solution allow users to set up a complete single-site or multi-site surveillance system with no dedicated server or NVR in place.

MEGApix® CloudCam™ cameras are a unique item in the Digital Watchdog lineup, as they operate as surveillance cameras and as self-contained servers. Each CloudCam camera utilizes an Edge version of the DW Spectrum Professional software and can be viewed and managed using an instance of DW Spectrum Client from a computer or through the camera’s web client. However, there are limitations to what a CloudCam camera can be used for.

This article will outline the limits of MEGApix CloudCam cameras when acting as Edge Servers.

Supported/Affected Devices:

MEGApix® CloudCam™ Camera Series

CloudCam and Standard DW Spectrum Servers

The standard DW Spectrum Professional setup is typically comprised of a Server and a Client. The Server is responsible for storing video recordings and facilitating system activity, while the Client is responsible for allowing users to view camera video and manage the devices within the system.

In comparison, each CloudCam camera contains the camera firmware for standard camera operation and an Edge version of DW Spectrum Server. Use of the DW Spectrum Client must be performed from a separate computer.

In some circumstances, it may be desired to have the camera record to itself on its own Edge Server, while also recording to an instance of the DW Spectrum Server software like a regular IP camera. This is not supported or advised, as it can overwork the processor of the camera.

In this scenario the CloudCam camera can be used as either an Edge Server or as a regular IP camera, but not as both. You will need to disable the DW Spectrum Edge feature in the camera’s web client if you are trying to add the CloudCam camera to a DW Spectrum System comprised of desktop Servers or rack mounted Servers.

CloudCam and Merging Systems

DW Spectrum Servers can be virtually merged into a single DW Spectrum System through network connections and can be managed with an instance of the DW Spectrum Client software. Similarly, MEGApix CloudCam cameras can be merged with up to 30 other CloudCam cameras to create a single, unified DW Spectrum System.

However, please be aware that CloudCam cameras should not be merged with regular DW Spectrum Servers as when Servers are integrated into a System, they take on the shared work and CloudCam cameras are not able to keep up with standard Servers.

**IMPORTANT: It is recommended to merge no more than 30 CloudCam cameras together when acting as a single DW Spectrum System. However, you may install more CloudCam cameras on the same local subnetwork if they remain unmerged and can be viewed using the Cloud Layout feature in DW Spectrum Client. It is recommended to avoid merging CloudCam cameras (in server-mode) into the same System as regular DW Spectrum Servers.

**NOTE: Use of the DW Spectrum Client software to view and manage systems of CloudCam cameras from a computer is permissible if the CloudCam cameras are part of a Spectrum System only containing CloudCam cameras and no DW Spectrum Servers.

CloudCam and I/O Support Limitations

As a MEGApix CloudCam camera can be used as either a regular IP camera or as a self-contained DW Spectrum Server, there are limitations to how it can be utilized with I/O devices. When using a CloudCam camera as a regular IP camera with a dedicated DW Blackjack or custom-built DW Spectrum Server, I/O configurations and the base camera functions can be used as normal.

However, when using a CloudCam camera acting as a self-contained server, the I/O wiring of the CloudCam camera will not be supported by the DW Spectrum Edge firmware when attaching I/O devices directly to the camera.

If you are planning to use I/O devices for a security system, it is recommended to use the DW Spectrum Server software on a computer rather than using the Edge software that CloudCam cameras use when acting as self-contained servers.
