DW Spectrum and Atlas Integration Guide

-----------------------------------

Affected Roles:  Owner, Administrator

Related Digital Watchdog VMS Apps:  DW Spectrum IPVMS

Last Edit:  September 27, 2024

-----------------------------------



Atlas Series Web Management Platform

Atlas System Access Control Panels can be managed and configured using a web management platform. This web platform can be integrated with your DW Spectrum System to create a cohesive network of cameras, video systems, and access control.

This article will outline how to integrate the Atlas Web Management Platform with DW Spectrum IPVMS when assigning a camera to a door.



**NOTE: The DW Spectrum user profile that will be used to connect with the Atlas system must use digest authentication.



Integrating Atlas Systems

Required Materials

The following materials can be acquired from ZKTeco USA:

  • For existing DW Spectrum Systems:
    • Atlas-Vid-Lic
  • For new DW Spectrum Systems:
    • Atlas-Vid-Bun (combines Atlas-Vid-Lic & DW Spectrum License)



Atlas System Integration Guide

To integrate your Atlas system with DW Spectrum IPVMS:

  1. Log in to your Atlas System and click on “Configuration”.

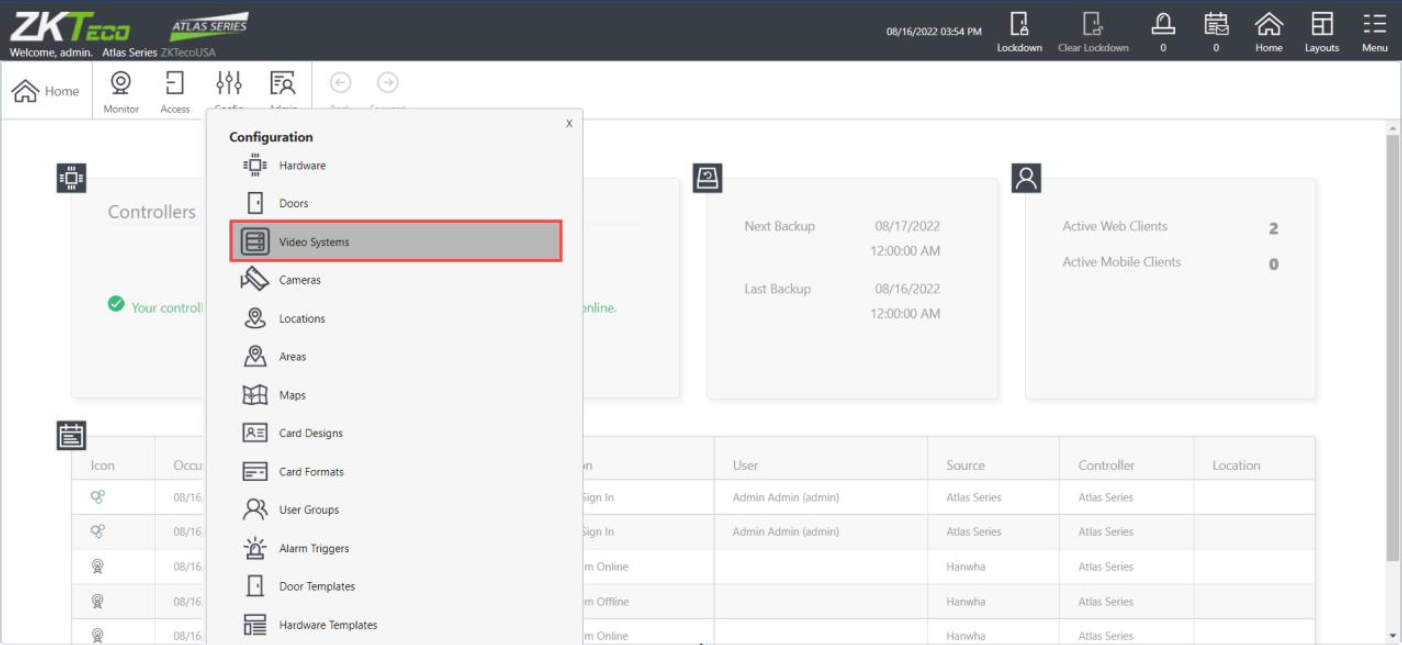

Select “Video Systems”.



  1. Click in the Model field and select “Digital Watchdog Spectrum”.

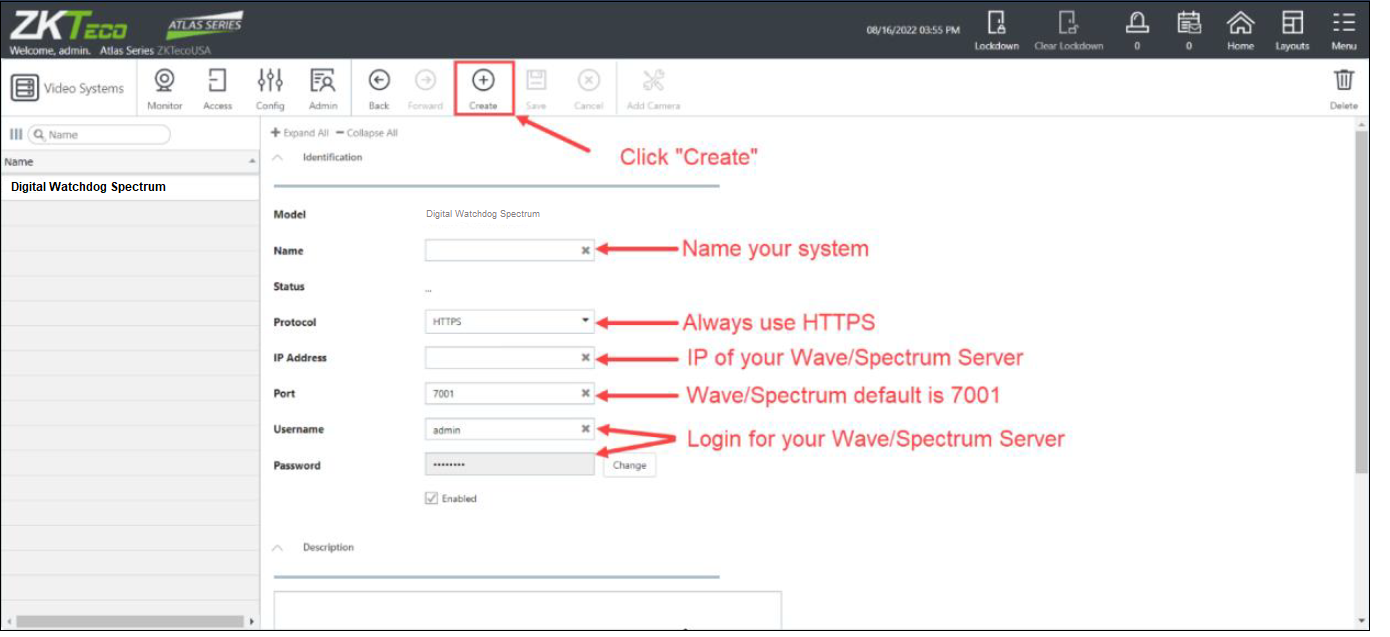

  1. Click “Create” to input your DW Spectrum configuration.
  • Name – name your system for easy identification.
  • Protocol – select “HTTPS”.
  • IP Address – enter the IP address of your DW Spectrum Server. You can find this information with your DW Spectrum Client.
  • Port – enter the port number of your DW Spectrum Server. The default network port number for DW Spectrum is “7001”.
  • Username – enter your username for DW Spectrum.
  • Password – enter your password for DW Spectrum.

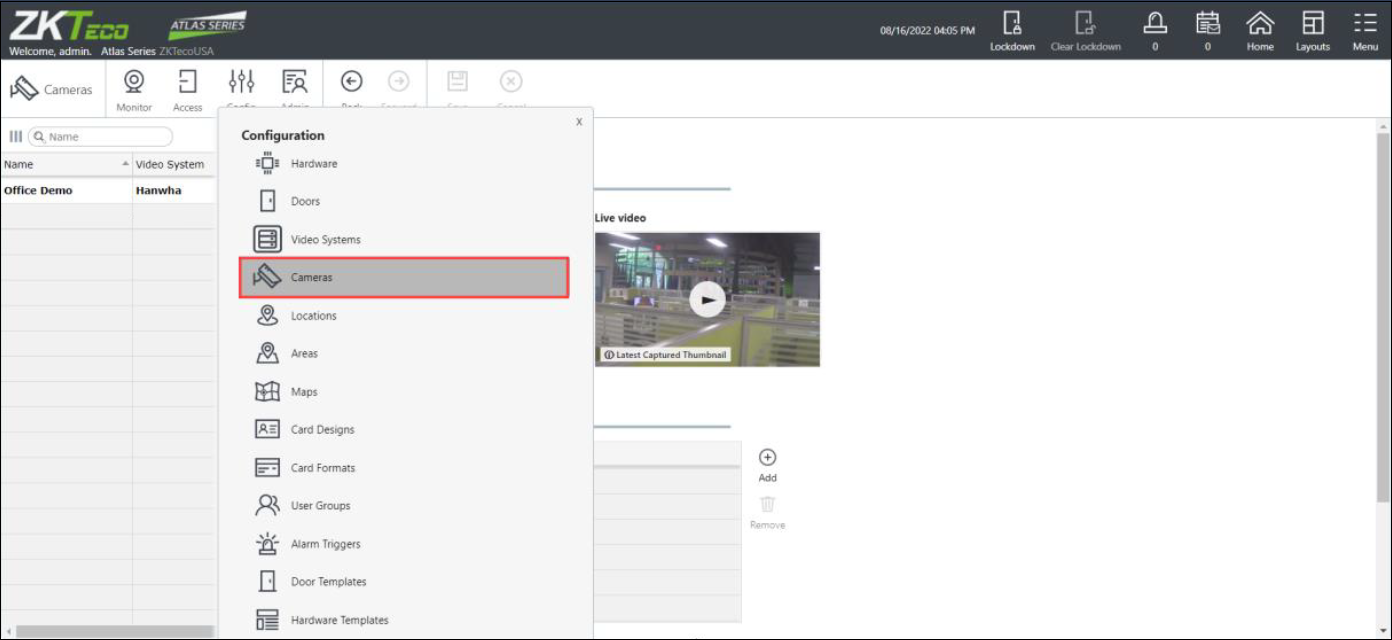

  1. After creating a connection to your DW Spectrum System, click on “Configuration” and select “Cameras”.

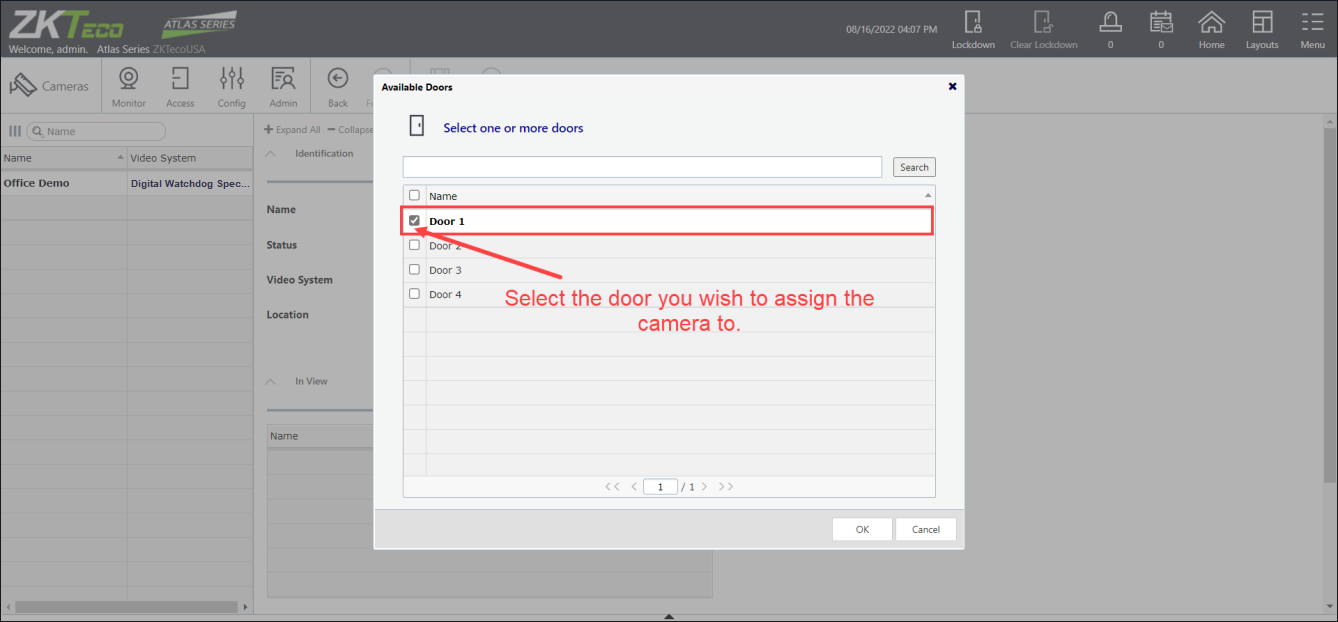

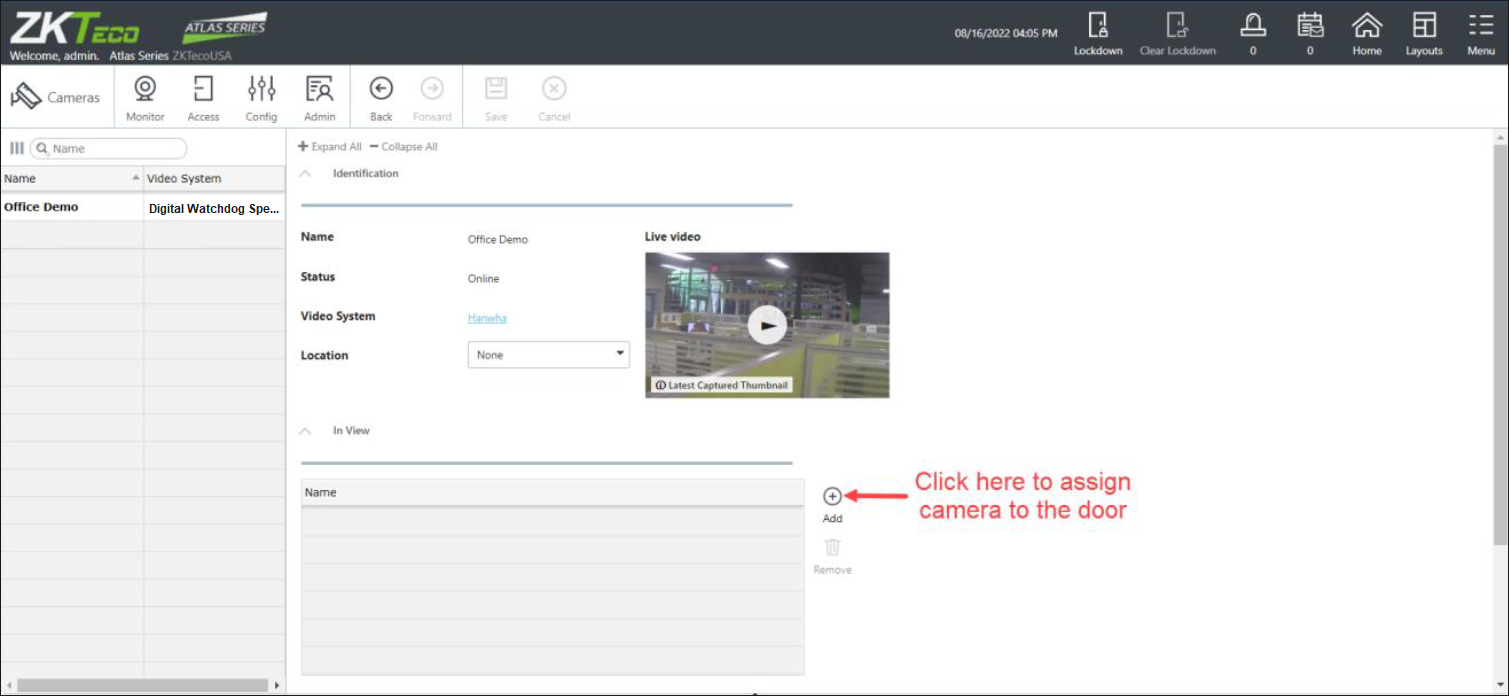

  1. Click the “Add” button and select the door you wish to assign the camera to.

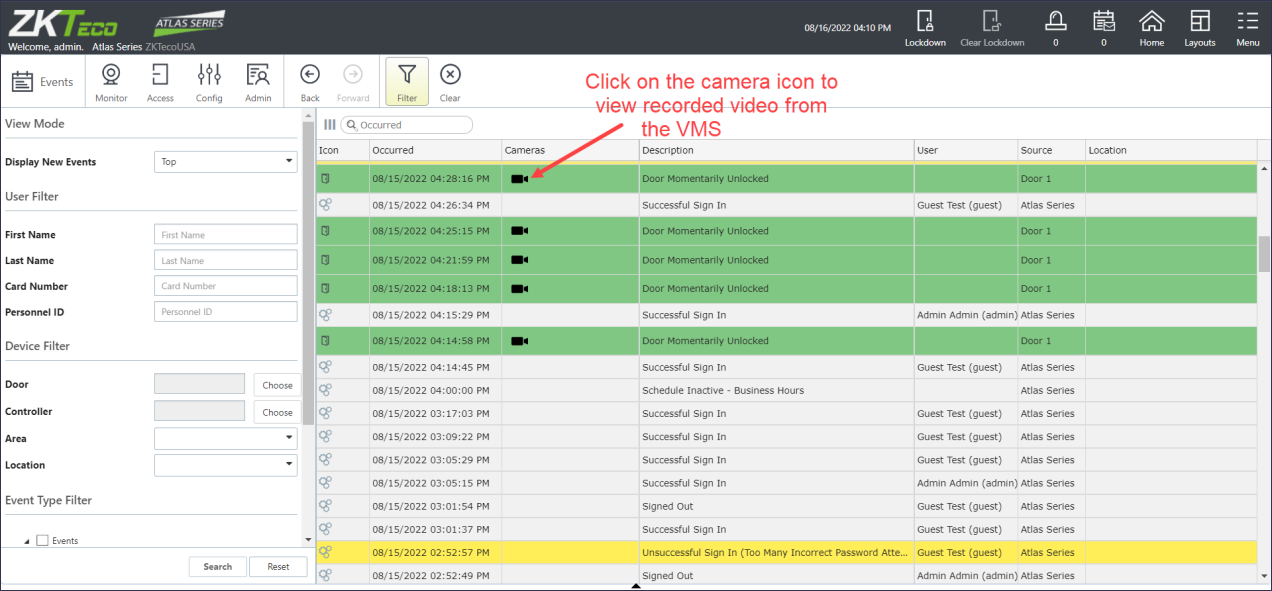

  1. Now that you have configured the DW Spectrum connection and assigned a camera, you can click the camera icon in the Atlas System’s Event Log to call video playback.
