cnVision Integration

-----------------------------------

Affected Roles: Administrator, Power Users

Related DW Software: DW Spectrum Professional

Last Edit: May 9, 2025

-----------------------------------

What is cnVision?

cnVision™ is a new line of wireless backhaul products from Cambium Networks as purpose built wireless solutions for video surveillance and CCTV market.

Typical Uses

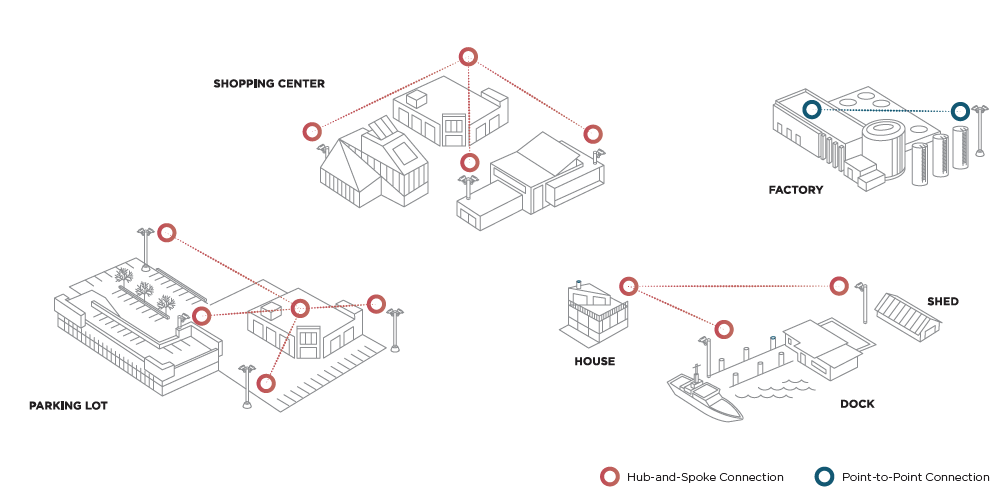

Some common examples of the cnVision solution’s flexibility and configuration options are ideal for wireless video-based surveillance implementations in environments such as parking lots, shopping centers, factories, farms and homes where a wired solution is not a viable option.

Hardware Overview

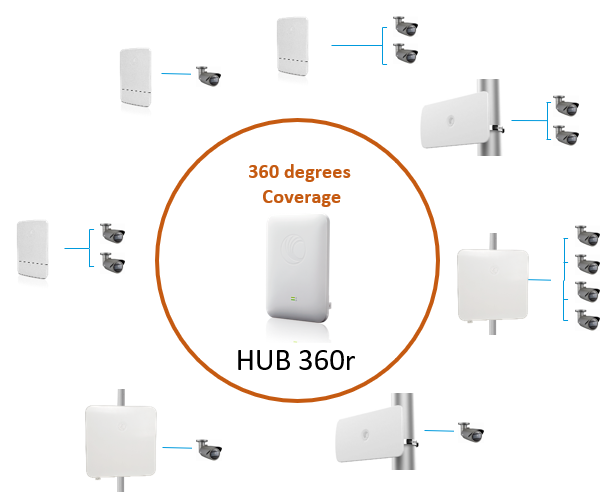

Hubs are aggregation points which connect to Clients over a wireless network connection. Camera feeds are given to Client hardware, which transport video streams back to the Hubs.

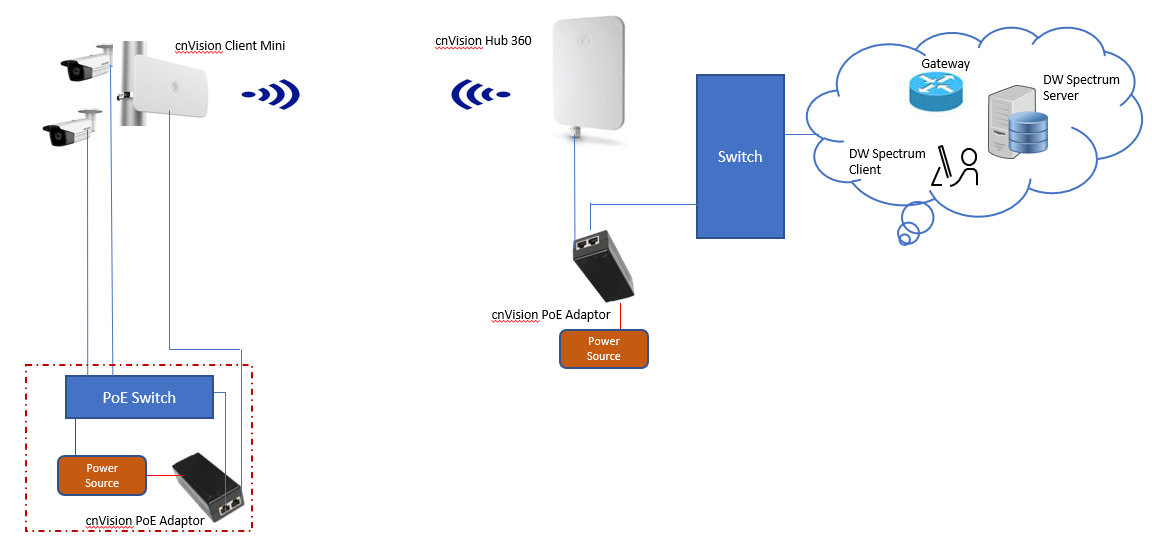

DW Spectrum & cnVision Integration – Solution Overview

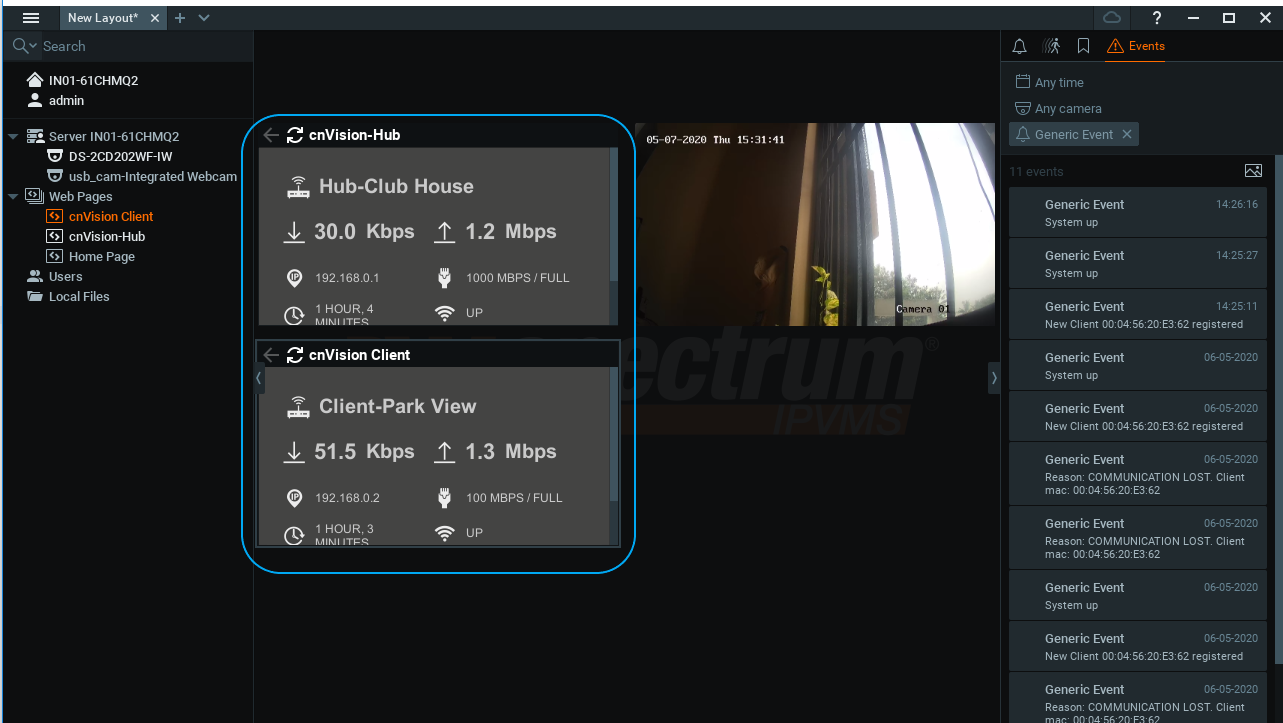

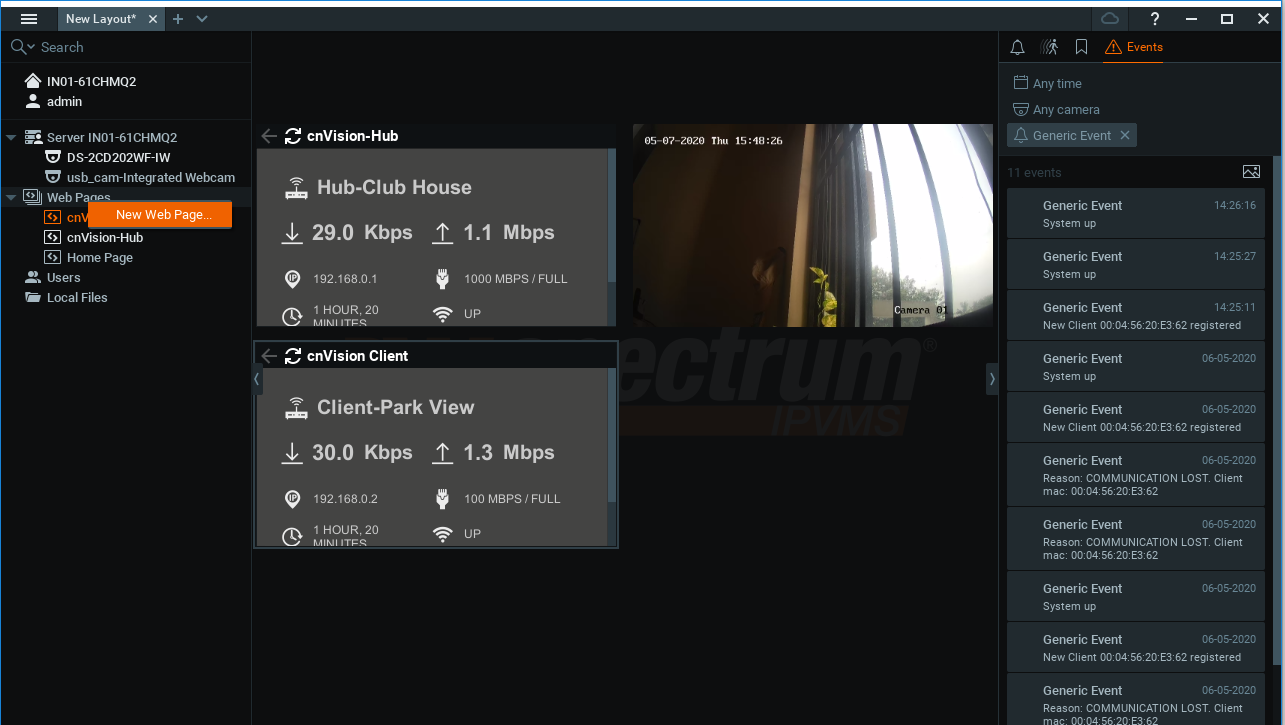

The cnVision devices can be integrated with DW Spectrum to display device statistics and to send event and alarm messages within the VMS consoles. This feature allows users to monitor device status and performance within the DW Spectrum console, instead of having to connect with each device individually.

cnVision users can set up alarms to notify the user of key events such as when a new device is registered, removed from the Site, or if it has been disconnected or rebooted.

Integration Logic

cnVision Hub/client has a daemon on the device – VMS agent. The VMS agent’s task is to communicate with DW Spectrum VMS.

Sample notification events include:

Client associates to Hub
Hub rejects Clients
Link up/down
Software update status

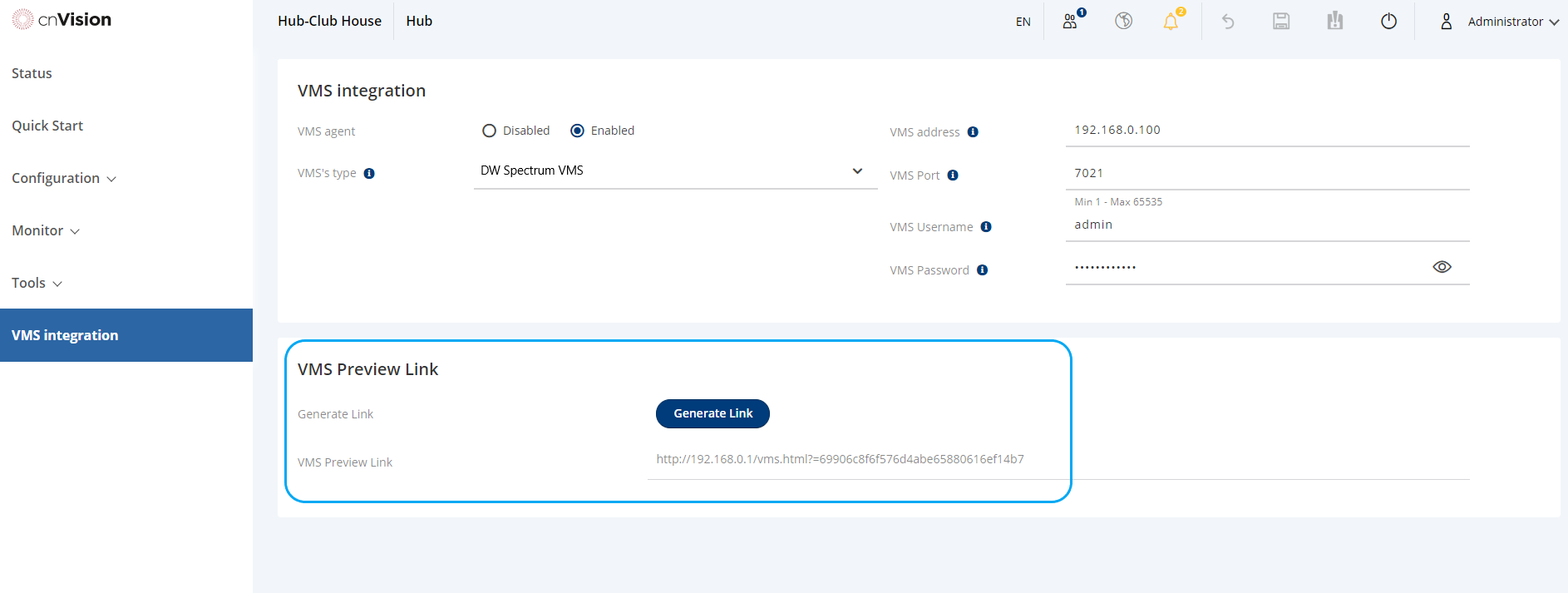

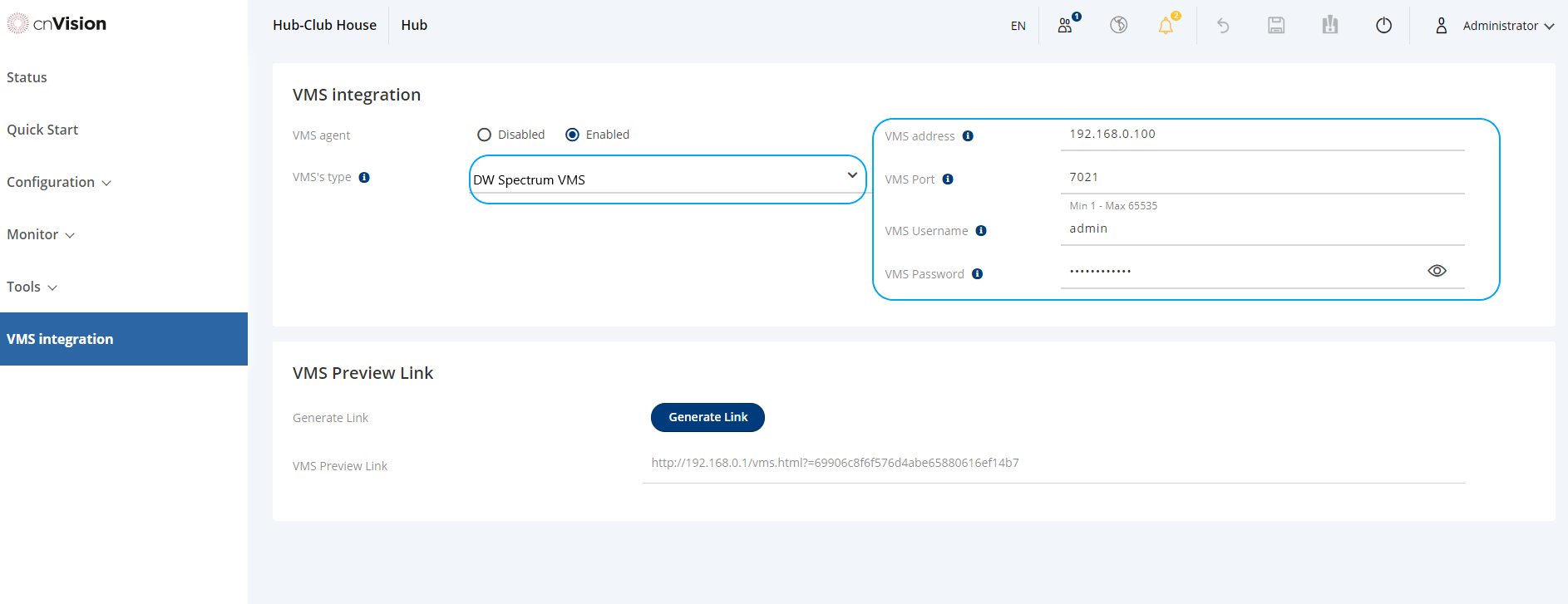

When such events occur, VMS agent converts the information into Web API format and sends it to DW Spectrum. As a prerequisite VMS type, address, port and credentials should be preconfigured in the cnVision Hub & Clients.
