C2P - Access Control Integration

Updated

C2P Access Control Integration

-----------------------------------

Affected Roles: Administrator

Related Digital Watchdog VMS Apps: DW Spectrum

Last Edit: January 21, 2020

-----------------------------------



Overview and Description

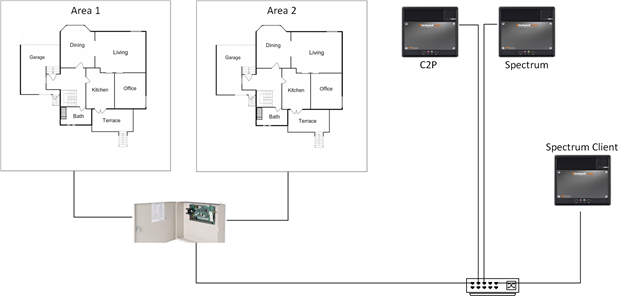

The Convergence to Pixels (C2P) automation platform is a middleware solution that provides the ability to integrate any IP-enabled device into the DW Spectrum platform. This framework makes the DW Spectrum Client the “single pane of glass view” for monitoring all metadata events including:

  • All metadata is normalized at the edge, resulting in a single database that utilizes a common set of tools for all integrations
  • Users only need to learn one interface to access a wider range of disparate metadata sources
  • Provides visual verification for all metadata events
  • Annotates metadata events in real-time onscreen, so users know why event alerts occur
  • All metadata events are stored in synch with recorded video archives in DW Spectrum



Supported/Affected Devices:

  • DW Blackjack C2P Workstation (DW-BJC2P)



Overview and Description

Critical Data Advantages

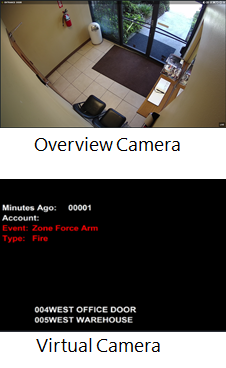

Critical data advantages of the data being recorded and displayed “side by side” with any associated video as opposed to a text overlay:

  • Cardholder screen is synchronized and time-stamped with any associated video
  • Access Control text is searchable with search results that link to associated video
  • Text appears alongside video, not as an overlay
  • Multiple camera views
  • Color of text insertion does not have any effect on video quality
  • Court verification is concrete



Features

  • All Access Control text is stored, user searchable and linked to associated video
  • Outbound communication with the door strike
  • Accept or Reject activity reported
  • Card Holder Image displayed



Enhanced Usability

Provides detailed information that is easy to read and manage.

  • Dual Verification – cardholder image with ID information displayed “side by side” with video of the access event.
  • Open physical doors via the VMS platform, made possible through ConvergenceTP ESE.



**NOTE: When integrating with an access control system a DW-BJC2P and DW-CNVBASE1 Base license will be required and will include 25 event sources (access control doors). If more than 25 access control doors are required individual licenses can be added using type-1 single licenses.









______________________________________________________________________________

For More Information or Technical Support

DW Technical Support: https://www.digital-watchdog.com/contact-tech-support/

DW Sales: sales@digital-watchdog.com | www.digital-watchdog.com

Rev: 06/25                              Copyright © DW. All rights reserved. Specifications and pricing subject to change without notice.
